Epsilon™ Dry Disconnect Couplings

Featuring an innovative double ball-valve system, Epsilon™ Dry Disconnect Couplings deliver the lowest product loss in the industry. A tactical balance of an unrestricted flow path and double shutoff reliability makes Epsilon™ the safest and most efficient coupling system in the world.

Learn More About Utility Couplings for Pharmaceuticals

Features & Benefits

Lowest fluid loss, driven by the innovative unique double ball-valve system, ensures the lowest product loss in the industry.
Unparalleled safety with multiple interlocks that eliminate unintentional disconnects and chemical releases that could threaten worker safety and the environment.
Full flow with unrestricted flow path. No turbulence!
Optimal defense against cross-contamination with optional keyed couplings that mechanically lock out and isolate transfer lines.
Engineered for easy operation and maintenance with no special tools needed for seal replacements.
316 Stainless or Hastelloy^® Construction for critical, aggressive, corrosive fluids.
1", 2" and 3" sizes
Pressures up to 435 psi (30 bar)

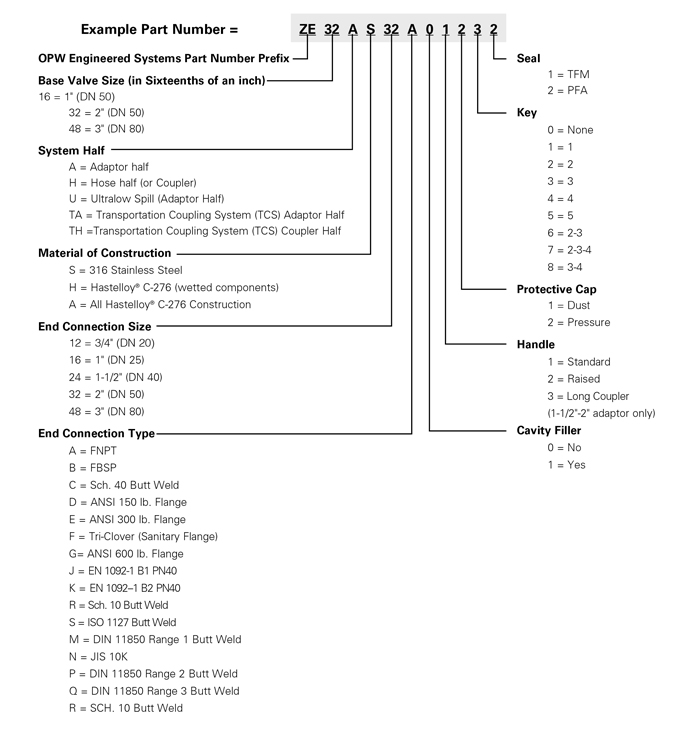

Order Guide

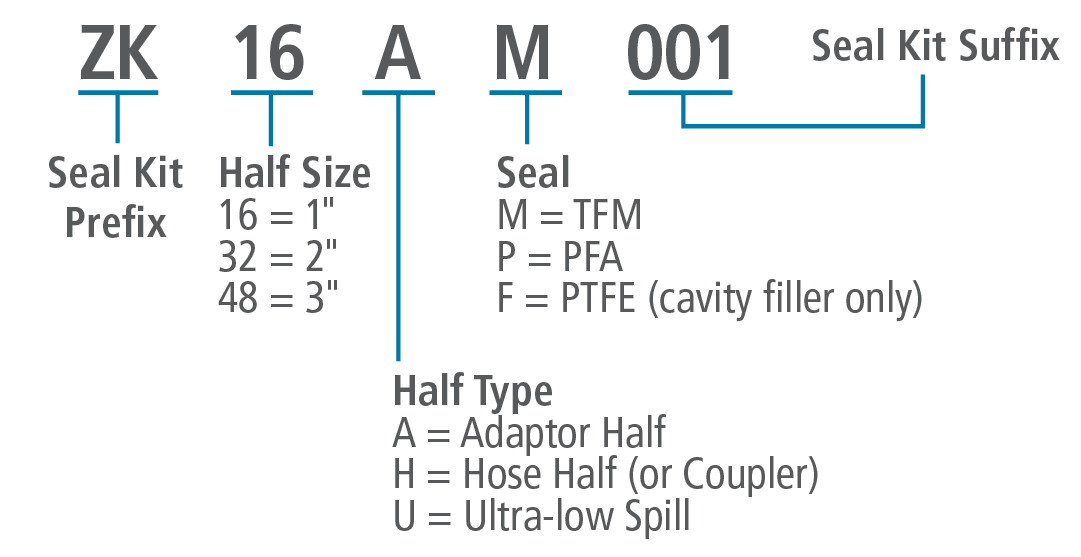

Seal Kit Order Guide

Technical

Click on the title below to view the technical information.

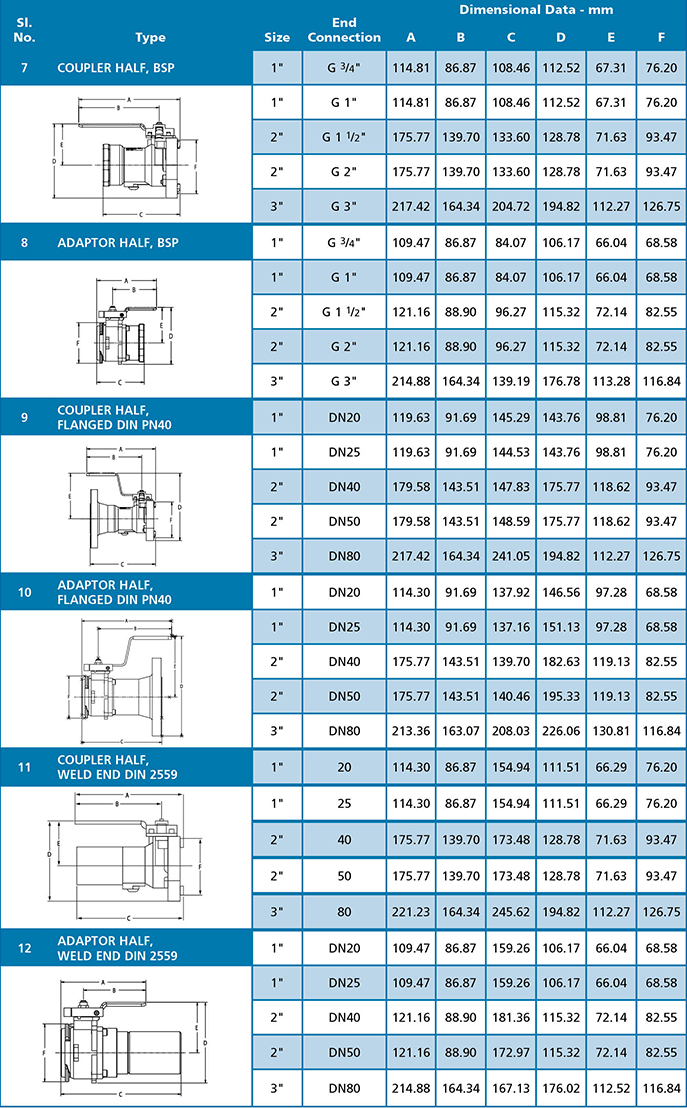

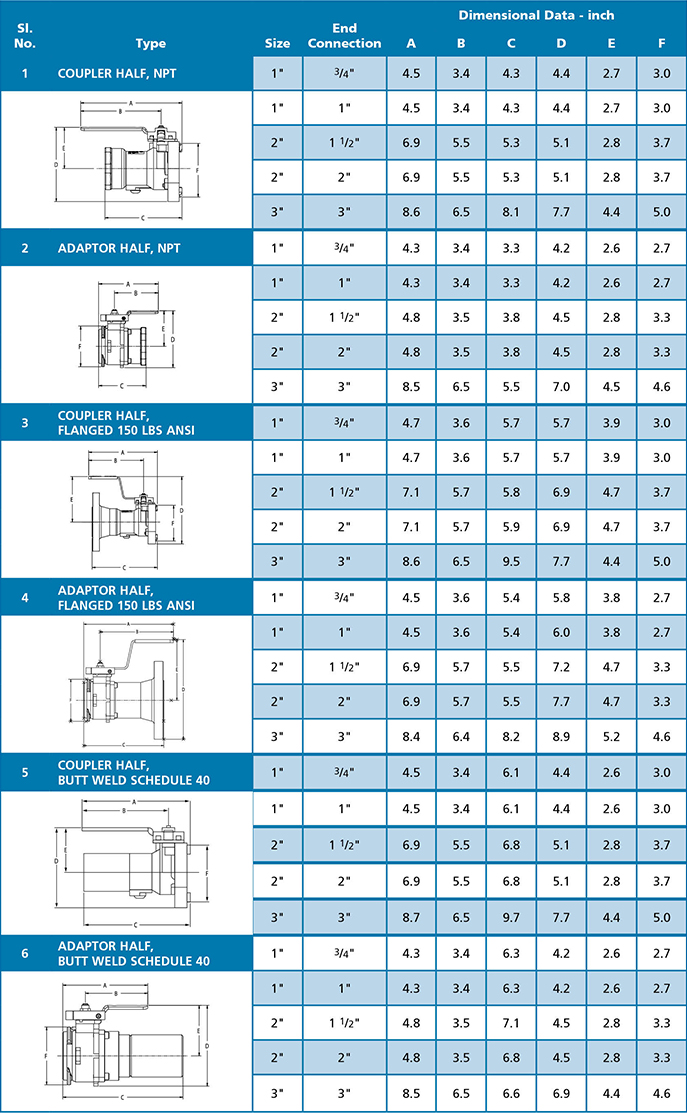

Dimensions

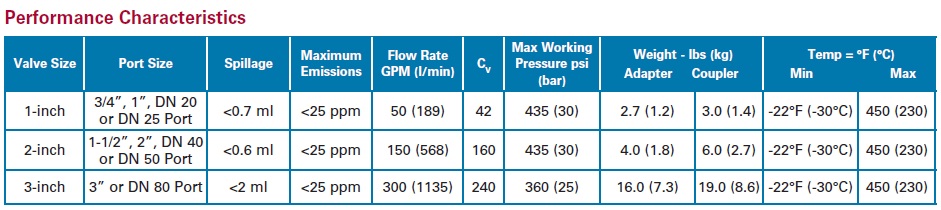

Performance Characteristics

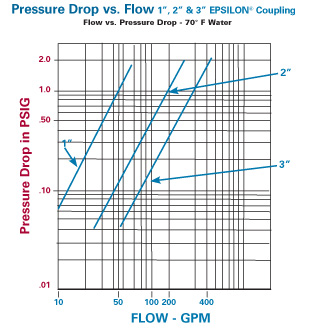

Pressure Drop vs. Flow Chart

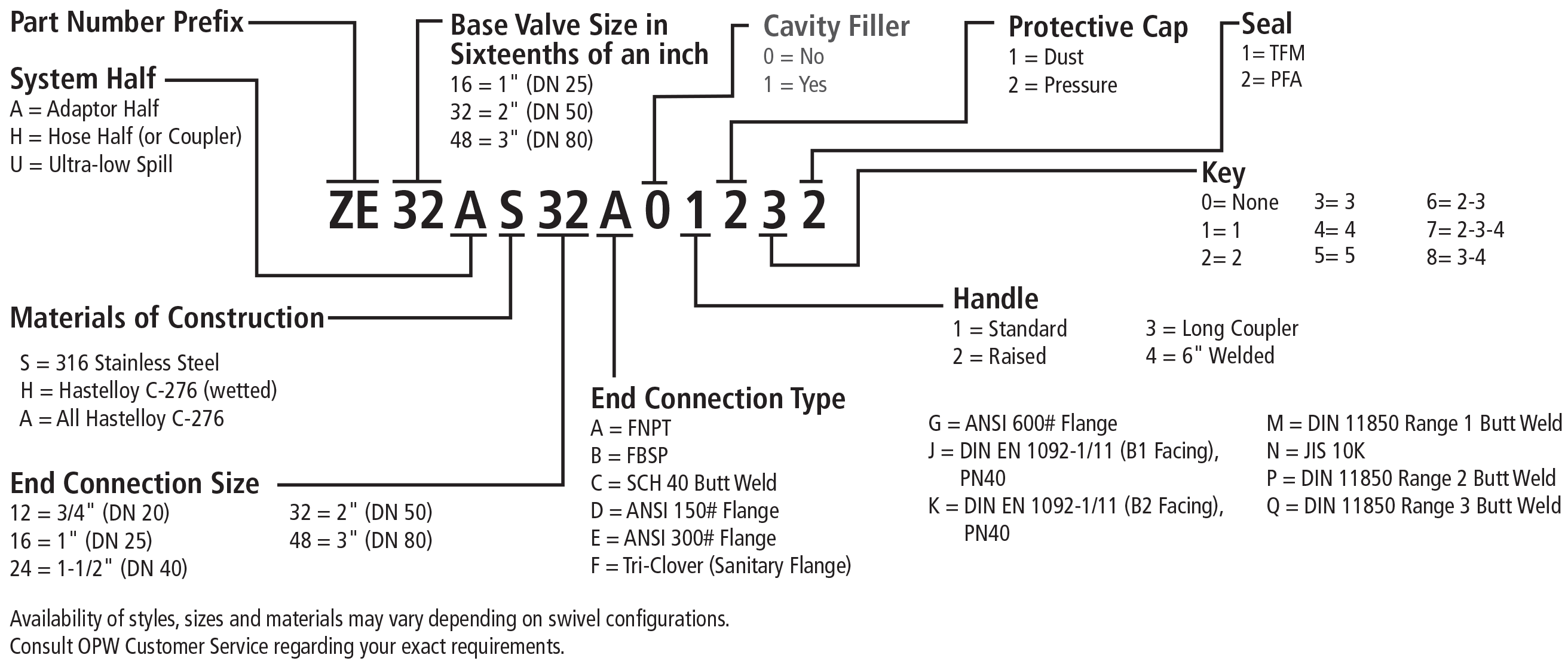

Order Guide

Options

Ultra Low Spill Face Seal
- This seal reduces the amount of spillage at disconnect to .2 cc. This seal is not pressure assisted and should only be used for applications lower than 100 psi.
Cavity Filled
- Designed to reduce the possibility of contamination by entrapment of process fluid in the void normally found behind the ball and the valve body. Ideal for applications where cross-contamination and cleanliness is a concern. Back side of the valve balls are bored for efficient cleaning.
Keyed Couplings
- For extremely critical operations, Epsilonoffers the unique keyed interface which locks out and isolates transfer lines, preventing cross-contamination.

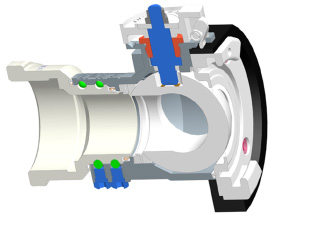

Dual Ball Race (Optional)
- Radial swivel seal
  - Replaces dynamic face seal
  - Lower leak rate
  - Lower seal mortality rate caused by over-compressing seal to install bearings
- Dual ball races with hardened stainless bearings
  - Replaces PTFE sleeve bearing that may become overloaded and allow greater axial misalignment causing the dynamic face seal to leak
  - Provides additional support for applications with long hose drops or high load requirements
- Spring energized dust seal

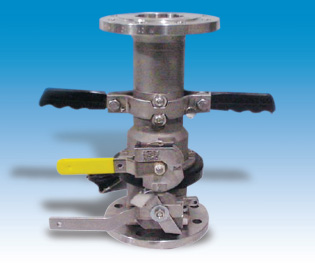

Transportation Coupling System (TCS)
- Specially designed for railcar, truck, isotainer or tote equipment used in transporting chemicals safely. Contact us for more information.

Applications

The following is a listing of some of the applications/products that have successfully used Epsilon^®.

Chemical	Application
Acids
ACN, BD, Latex
ACN, LPG
Acrylamid Polymers, Flocculants
Acrylates, Polymers, Solvents
Acrylic acid, aliph. Amines, Dispersions, Nitrobenzene, Benzene, C4-Components, flammable Solvents, Steam, Acrylmonomers, Diphyl, Oleum, HBr, Chloroformic acid (Chlorameisensre.)
Adhesives	In Plant
aliphat. Amines
Allylalcohol
Ammonia water
Butadiene
Biodiesel	In Plant
Butyrolactone, THF, Butanediole, BD, Methanol
EO, PO
Ethylene Oxide (EO)	Railcar
Fine Chemicals
Fine Chemicals, Syltherm (Heat transfer Oil)
Flavors, Fragrances
Glues, Adhesives
Hydrofluoric Acid
Isocyanates, Xelene, n-Butylacetate
Latex
Liquid Ammonia
liquid Ammonia, Methylamines, ACN, EO
liquid Cristals
Methanol	Offshore
Paints, Dispersions, Isophtaloylchloride
Paints, Resins, Glue
Pharmaceutical Chemicals, Dichloromethane, Toluene, Solvents
Pharmaceuticals
Pharmaceuticals, Ammonia (23%), pharmaceutical Slurries
Pharmaceuticals, Sylterm
Pharmaceuticals, Sylterm
Phenol, ACN, Acrylic acid, Acrylacetate, Dispersions, NaOH, H2O2
Photographic Chemicals
Process Development
R134A, (Fluorinated Hydrocarbons)
Refrigerant / Blowing Agent	Tank Cars/Trucks
Rheovis Tank Truck
Silane, Siloxane, Chloro-Silane, Solvents, Waste Treatment
Siloxane
Solvents
Solvents, Paint Resins
Terypidal Tars
THF
Transformer Oil, Acrylates, Benzene, Toluene, Xylene, Aliphatic Solvents
Trichloroacetic acid
Truck/Transport

Photos

Videos

Epsilon Low-Spill Coupling System

Epsilon is a low spill coupling, based on a double ball valve system integrating a sophisticated safety design. Beyond the common advantages of a ball valve design, Epsilon provides for product flow through an unrestricted flow path and double shut-off reliability in the coupling connection.

OPW Engineered Systems' Epsilon™ Coupler: Maintenance and Repair

Detailed step-by-step instructions for the complete disassembly and reassembly of the Epsilon™ coupler. Epsilon comes in stainless steel or Hastelloy® and because of its double ball valve design, Epsilon is a sophisticated low spill coupling system. For the best in-plant chemical transfers, select OPW's Epsilon. SHOW MORE
