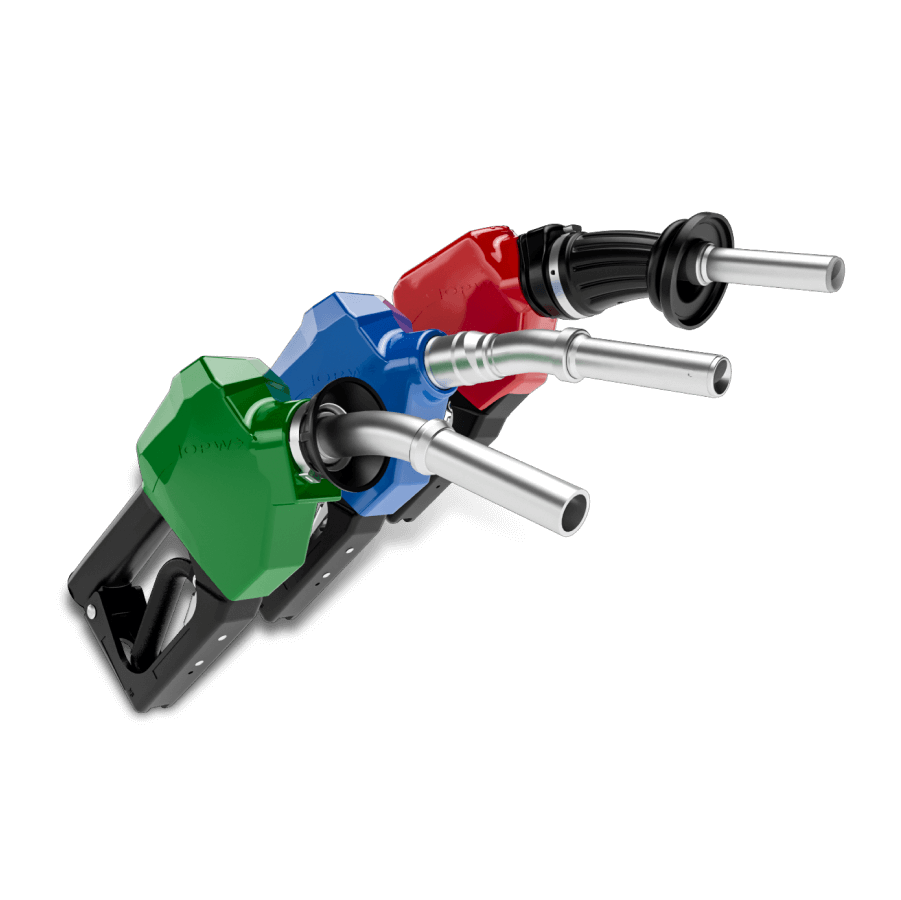

14 Series Nozzles

The OPW 14 Series nozzles feature innovative patented spout technology, designed to serve up a cleaner, greener fueling experience for your customers. OPW 14 Series nozzles reduce the impact on the environment by significantly minimizing the potential of fuel being retained in the spout after fueling, keeping gasoline and diesel off your hands, the dispensing equipment and the ground.

Features & Benefits

• UL and ULC listed.
• 14C Diesel Capture Technology – A specially designed chamber inside the nozzle safely captures diesel fuel outside the spout when the nozzle is returned to the cradle.
• 14E CARB ECO Dripless Nozzle – Patented free-draining dripless-spout technology for use with gasoline and up to 10% ethanol blends. The 14E is California Air Resources Board (CARB)-certified.
• 14BP Automatic Dripless Nozzle – Patent and Patent-Pending dripless spout technology without Interlock, for use in gasoline, and up to 25% ethanol blends.

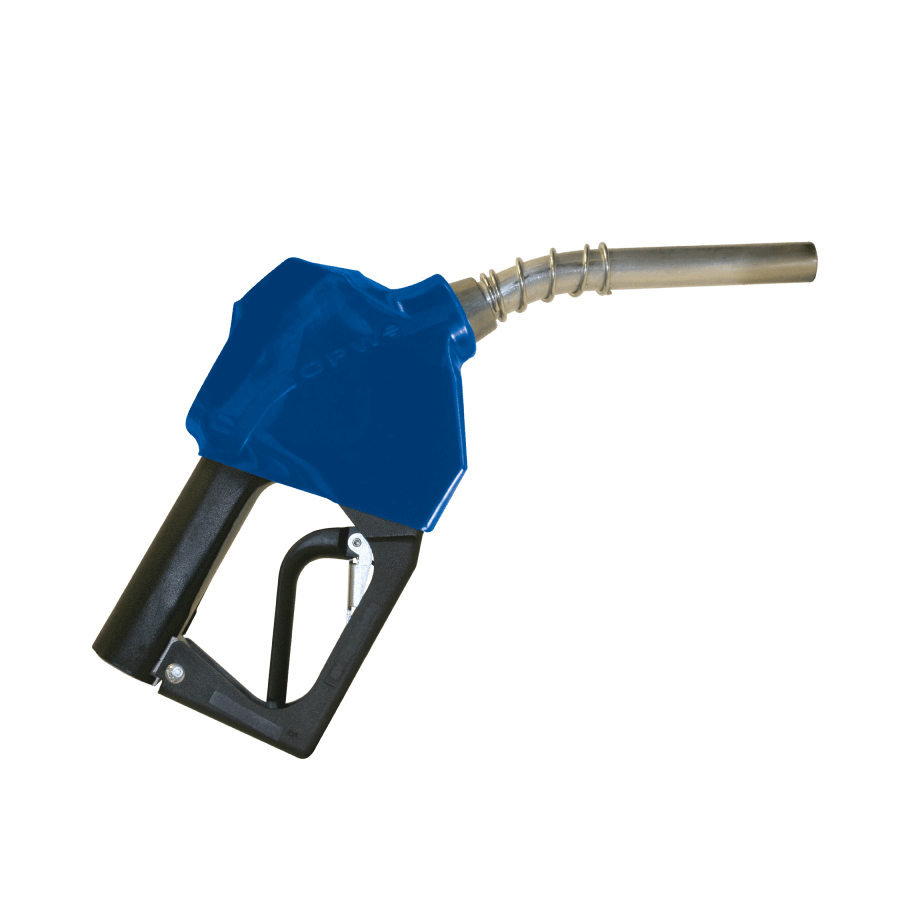

The OPW 11^® Series automatic nozzles are OPW’s premium conventional nozzles for safe retail and commercial petroleum filling and is the most trusted conventional nozzle in the world for full service use.

Features & Benefits

• Safe for Use - UL- and ULC-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
• Durable and Long Lasting Design – Cycle-tested and proven to last longer than 1 million cycles - Better than any other nozzle available on the market today*
• Convenient – One-fingerhold-open clip that is easy to set the flowrate (not on all models)
• Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.

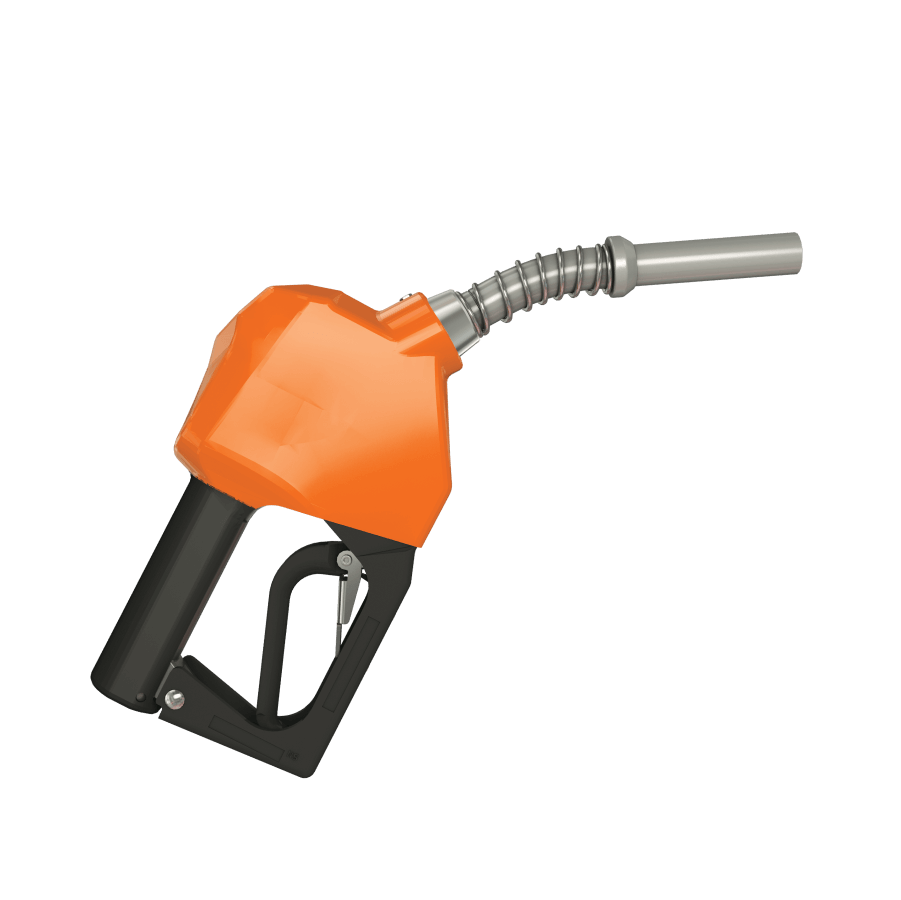

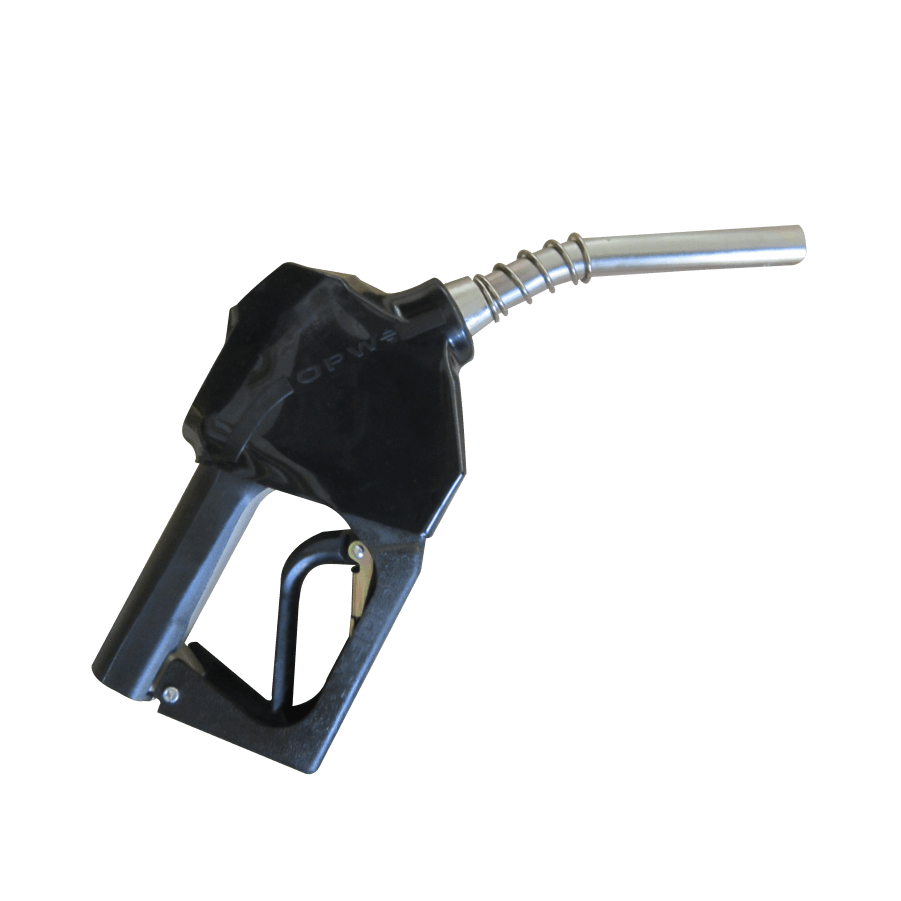

The OPW 11BP Series nozzles are designed and rigorously tested for use in today’s alternative fuels. It’s the first nozzle of its kind to be UL-Listed for use in Ethanol-blended fuels up to 85%.

Features & Benefits

• Safe for Use - UL- and ULC-Listed for use in up to 85% ethanol blends.
• Durable and Long Lasting Design – Cycle-tested and proven to last longer than 1 million cycles - Better than any other nozzle available on the market today*
• Convenient – One-fingerhold-open clip that is easy to set the flowrate (not on all models)
• Easy to use – Utilizing Accu-Stop^® to-the-penny Flow Control Technology.

The OPW 11BP Series nozzles are designed and rigorously tested for use in today’s alternative fuels. It’s the first nozzle of its kind to be UL-Listed for use in Ethanol-blended fuels up to 85%.

Features & Benefits

• Safe for Use - UL- and ULC-Listed for use in up to 85% ethanol blends.
• Durable and Long Lasting Design – Cycle-tested and proven to last longer than 1 million cycles - Better than any other nozzle available on the market today*
• Convenient – One-fingerhold-open clip that is easy to set the flowrate (not on all models)
• Easy to use – Utilizing Accu-Stop^® to-the-penny Flow Control Technology.

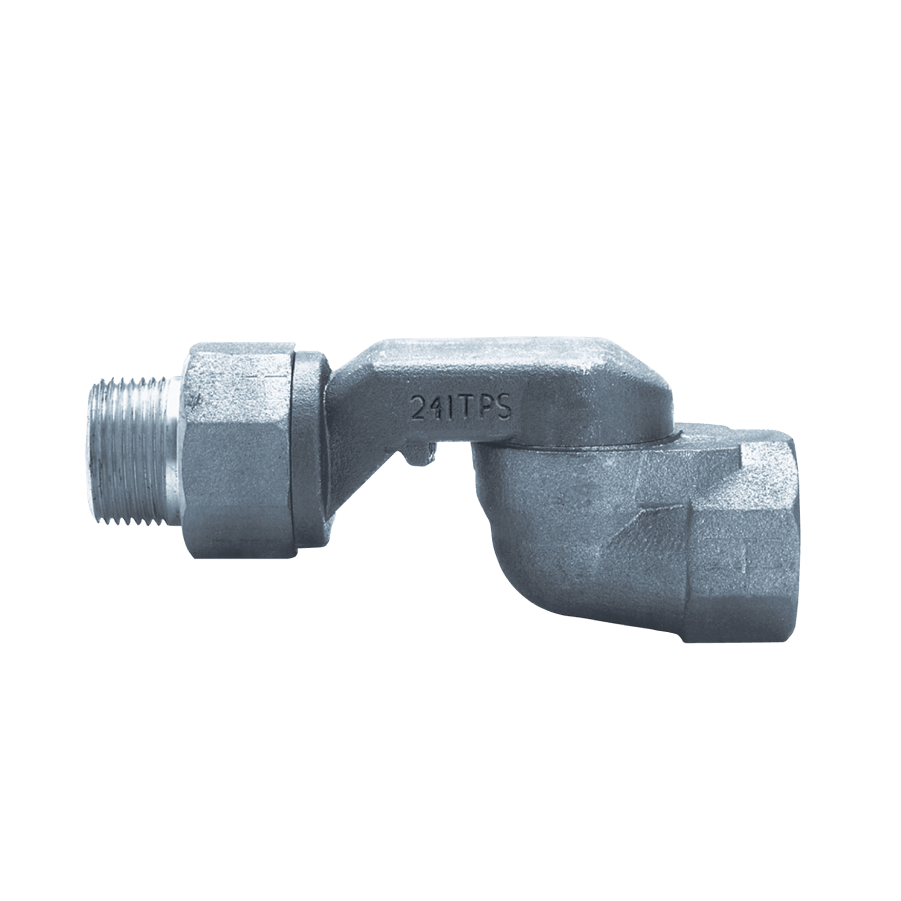

The OPW 241TPS Series of swivels are designed and rigorously tested for applications where easy nozzle and hose handling is important for customer convenience.

Features & Benefits

• UL and ULC listed for use in standard gasoline and diesel as well as models available and UL listed for up to 25% ethanol blends (E25), 85% ethanol blends (E85) and biodiesel blends up to 20% (B20).
• Allows for easy nozzle positioning in fill pipes – Utilizing two planes of rotation.
• Reduces premature hose wear – Utilizing two planes of rotation.
• Added protection vs. thermal and chemical degradation – Dual Seals.

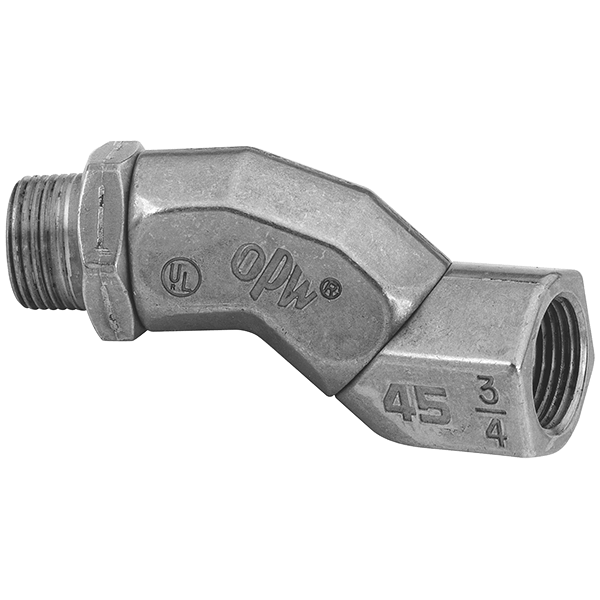

The OPW 45 swivel is designed for gasoline self-service applications where easy nozzle and hose handling is important for customer convenience. The 45 is installed between the nozzle and hose to reduce strain, providing flexibility so fueling hoses last longer.

Features & Benefits

• UL and ULC listed for use in standard gasoline and diesel as well as models available and UL listed for up to 25% ethanol blends (E25), 85% ethanol blends (E85) and biodiesel blends up to 20% (B20).
• Compact, attractive profile for a sleek, modern appearance.
• Secure design not repairable or re­buildable for certainty of operation. Every OPW 45 is factory assembled and tested.
• Better flow performance - less restriction means higher refueling speeds.
• Unique two planes of rotation for easy nozzle positioning and hose life.
• 50 psi (3.45 bar) maximum pressure.

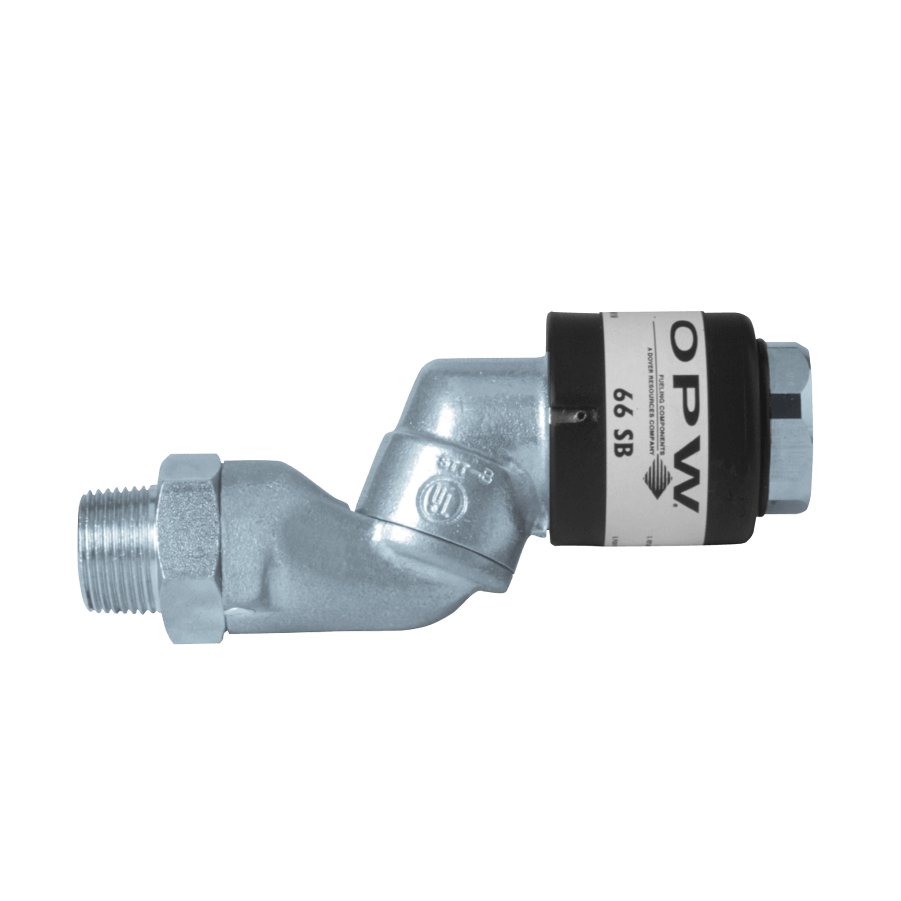

The OPW 66SB Swivel Breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.

Features & Benefits

• UL and ULC listed for use in gasoline, diesel and up to 10% ethanol blends.
• Pull Force - the 66SB will break away with a pull force of no more than 350 lbs.
• Easily Reconnected at Waist Height - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
• Protected Coupling and Poppet - the breakaway's poppet and sealing surface are protected from impact during separation by a plastic sleeve.
• Reduces Connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
• Double O-Ring Seal - both swivel joints are protected by a double O-Ring design.

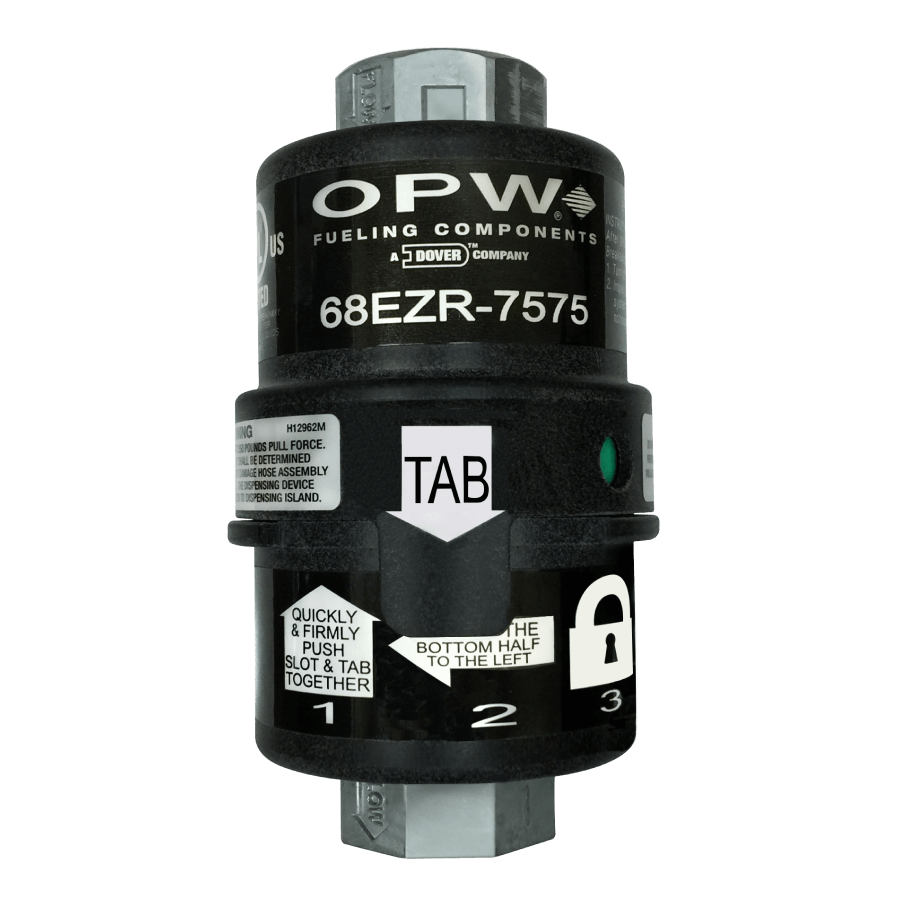

The OPW 68EZR Reconnectable Breakaway has been designed for retail fueling operations to deliver an increased level of security in the event of a drive off. Not only is it the fastest and easiest breakaway in the industry to reconnect, but also the one that delivers the greatest peace of mind that it is securely reconnected.

Features & Benefits

• UL and ULC listed for use in standard gasoline and diesel as well as models available and UL listed for up to 25% ethanol blends (E25), 85% ethanol blends (E85) and biodiesel blends up to 20% (B20)
• Pull Force – the 68EZR will break away with a pull force of no more than 350 lbs.
• Unique Double-Poppet Design –features low pressure drop.
• Easily Reconnected – features “Push-Twist-Click” technology; simply realign the valve, push in and then twist until you hear the audible click.
• Cold weather compatible
• Reconnection force of approximately 7 lbs.

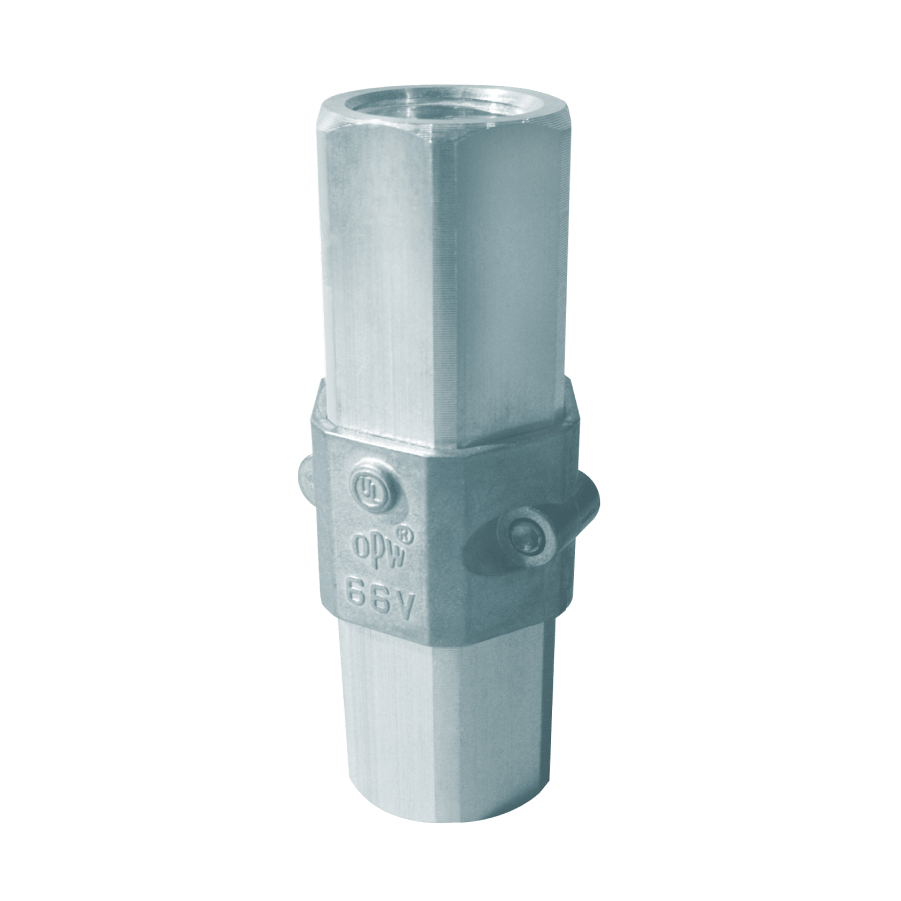

The OPW 66V Series breakaways are designed and rigorously tested for use in today’s fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system

Features & Benefits

• UL and ULC listed for use in standard gasoline and diesel as well as models available and UL listed for up to 25% ethanol blends (E25), 85% ethanol blends (E85) and biodiesel blends up to 20% (B20)
• Prevents Costly Damage to Dispensers – Pulls apart at less the designed pull force during drive-offs.
• Certainty of Operation – Designed for single use, so you know it is replaced instead of re-assembled.
• Prevents Hazardous and Costly Clean Up – Unique double poppet design closes leak path from both dispenser and separated hose side.

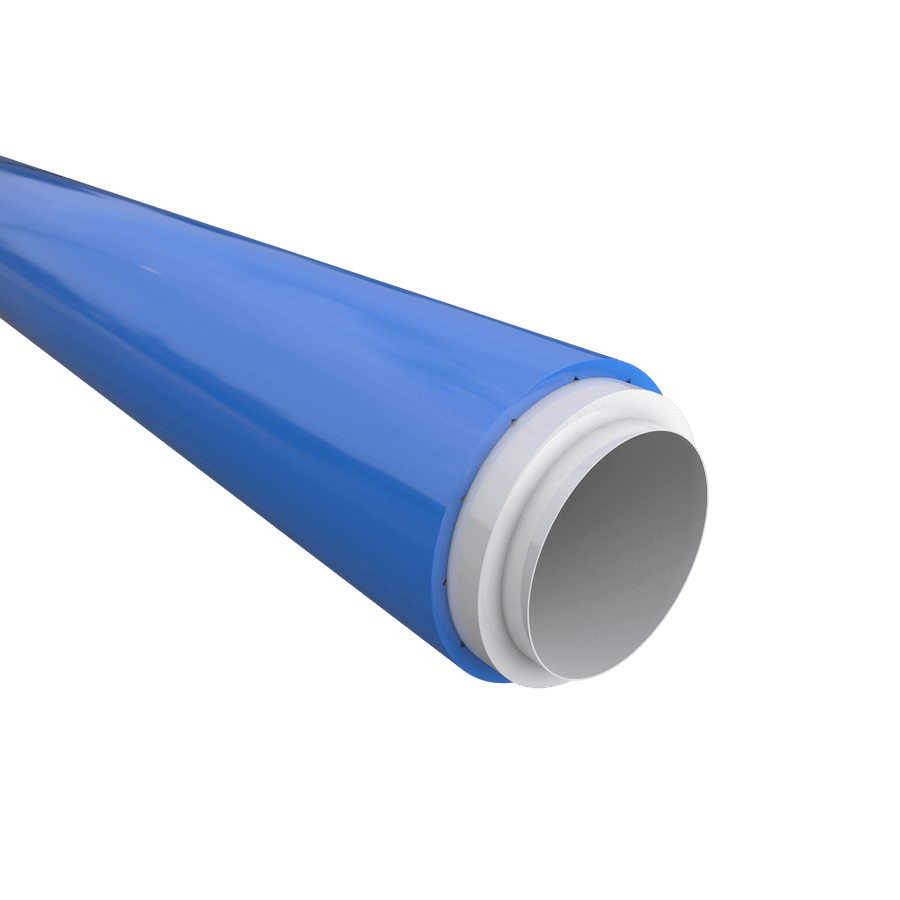

50 Years of Unmatched Chemical Resistance Performance Packed into One Unique Pipe - KYNAR® PVDF + OPW = 20 Years of Excellence in Underground Pipe Performance. OPW has developed a pipe in response to the voice of the customer. You asked and we delivered! The new pipe is more flexible, lighter and has reduced memory. New 3” size accommodates high-flow applications. And as always, UL listed to the current standards.

Features & Benefits

• No buried or underground fittings or joints
• No glue kits or welding of joints in the field
• Continuous piping runs between containment sumps
• All termination points and pipe connections are safely contained inside sumps

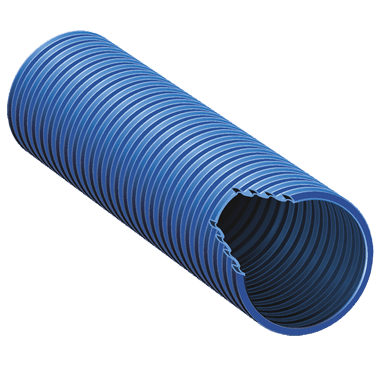

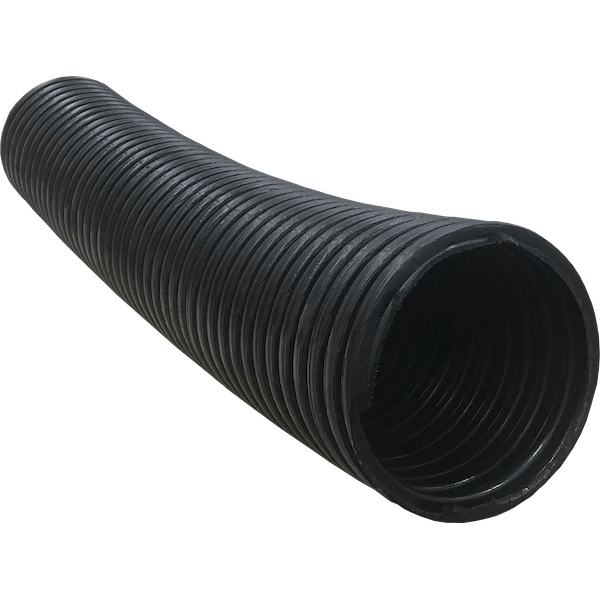

A 6" diameter corrugated flexible conduit used to provide access to and permit the future replacement of the Flex piping if desired. This corrugated pipe is strong enough to withstand H-20 loading requirements when properly buried and thick enough to minimize damage from shipping and jobsite handling. Access pipe can accommodate the 3/4", 1", 1-1/2", 2”, 3" FlexWorks supply pipe.

• Crush and puncture-resistant
• Semi-smooth liner facilitates ease of installation
• Saves you time and money
• No buried joints

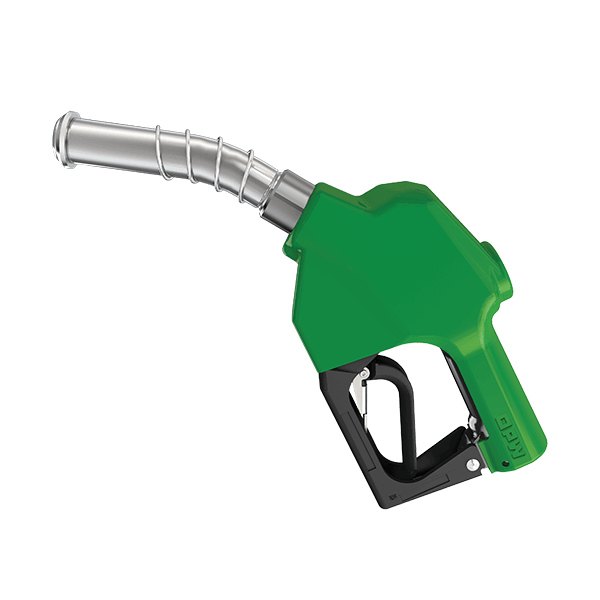

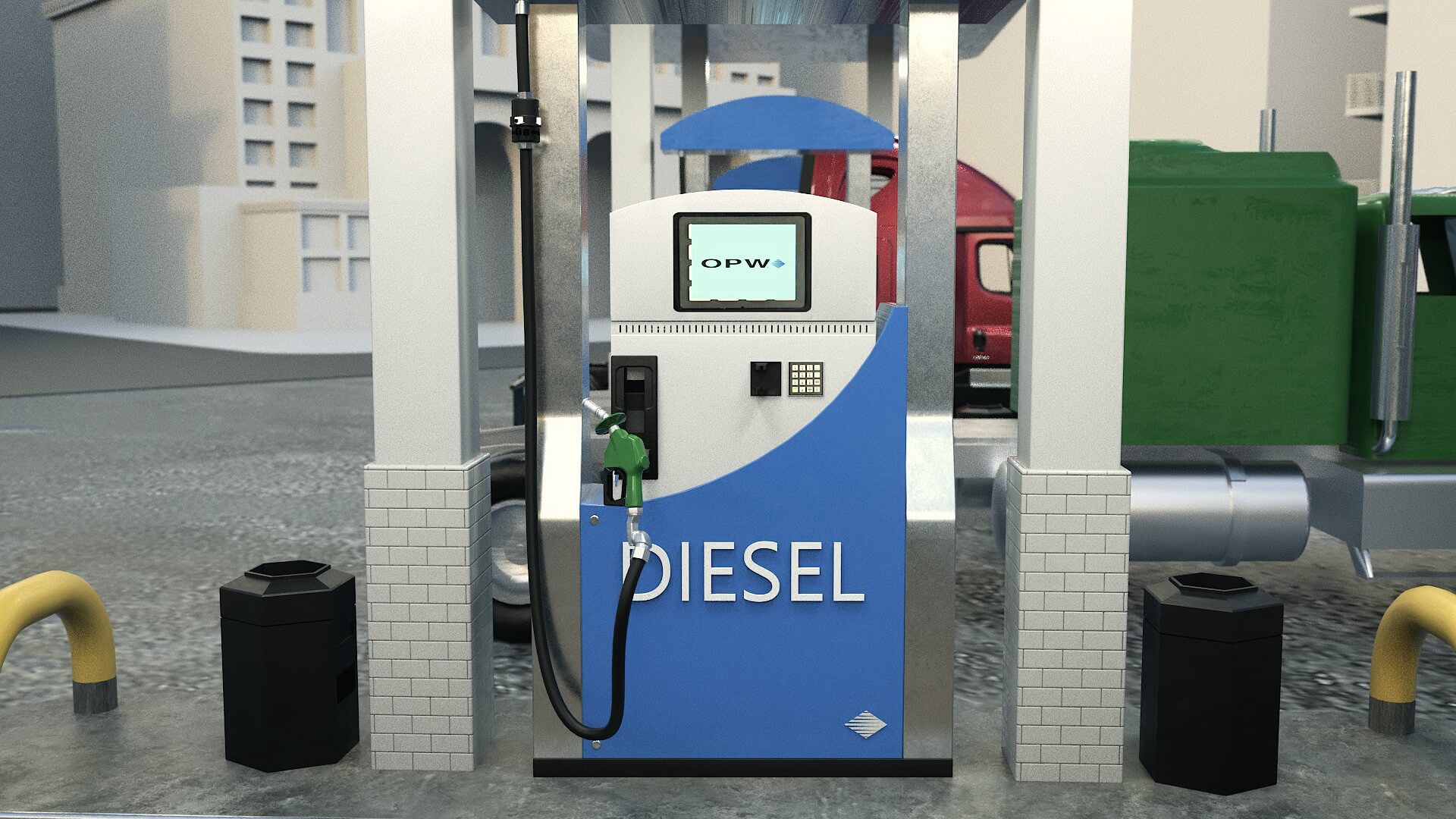

If you operate a full-service truck stop, refuel your own fleet or manage a card-lock refueling location, the low-cost, long-life and durability of the OPW 7HB® high-flow nozzle can help increase your productivity, sales and profits.

Features & Benefits

• Safe for Use - UL- and ULC-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
• Durable and Long Lasting Design – Cycle-tested and proven to last longer than 1 million cycles - Better than any other nozzle available on the market today*
• Convenient – One-fingerhold-open clip that is easy to set the flowrate (not on all models)
• Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.

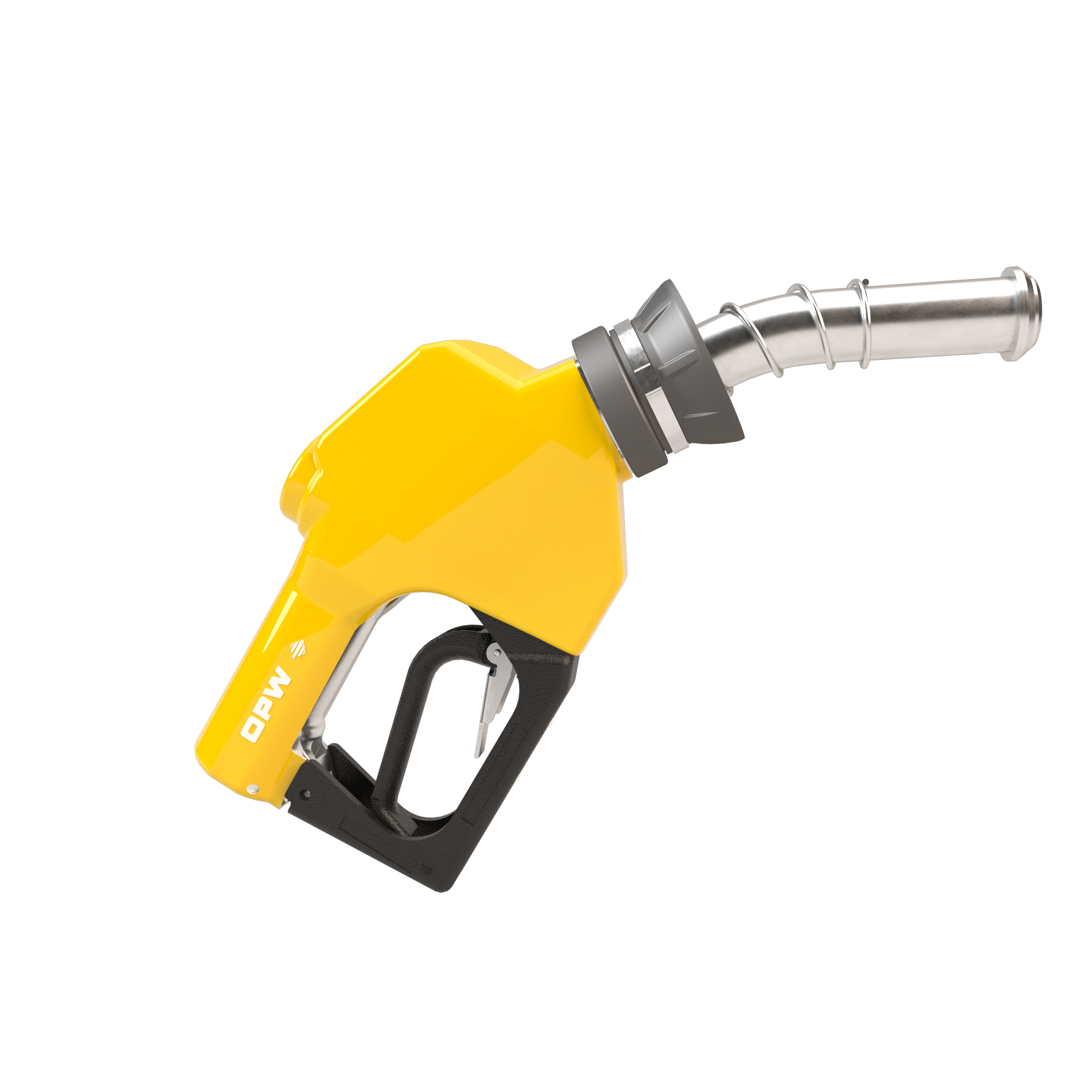

The OPW 14HC Hi-Flo is part of the new OPW 14 Series cleaner fueling experience nozzles, featuring innovative patented* diesel-capture technology. This innovation is designed to provide a cleaner, greener fueling experience for retail and commercial high speed truck stop lanes.

Features & Benefits

• Diesel Fuel Capture Technology* - The patented technology allows excess diesel fuel to drain into a uniquely engineered chamber located in the body of the nozzle located at the base of the spout. This excess diesel fuel is then introduced back into the fuel stream.
• Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.
• Attractive – Two-piece hand insulator which includes NEWGARD™ barrel cover and colored scuff guard, is the most comfortable nozzle in the industry to use.
• Rugged Durability – Designed to meet the rigorous demands of high-volume sites.

The OPW 241TPS Series of swivels are designed and rigorously tested for applications where easy nozzle and hose handling is important for customer convenience. The new 1” size accommodates High Flow Applications.

Features & Benefits

• UL and ULC listed for use in diesel up to 5% biodiesel and models available and UL listed up 20% biodiesel blends (B20).
• Allows for easy nozzle positioning in fill pipes – Utilizing two planes of rotation.
• Reduces premature hose wear – Utilizing two planes of rotation.
• Added protection vs. thermal and chemical degradation – Dual Seals.

The OPW 45 swivel is designed for gasoline self-service applications where easy nozzle and hose handling is important for customer convenience. The 45 is installed between the nozzle and hose to reduce strain, providing flexibility so fueling hoses last longer. The new 1” size accommodates High Flow Applications.

Features & Benefits

• UL and ULC listed for use in diesel up to 5% biodiesel and models available and UL listed up 20% biodiesel blends (B20).
• Compact, attractive profile for a sleek, modern appearance.
• Secure design not repairable or re­buildable for certainty of operation. Every OPW 45 is factory assembled and tested.
• Better flow performance - less restriction means higher refueling speeds.
• Unique two planes of rotation for easy nozzle positioning and hose life.
• 50 psi (3.45 bar) maximum pressure.

The OPW 68EZR Reconnectable Breakaway has been designed for retail fueling operations to deliver an increased level of security in the event of a drive off. Not only is it the fastest and easiest breakaway in the industry to reconnect, but also the one that delivers the greatest peace of mind that it is securely reconnected. In its new 1” size, 66 EZR Reconnectable Breakaways accommodate high-flow applications.

Features & Benefits

• UL and ULC listed for use in diesel up to 5% biodiesel and models available and UL listed up 20% biodiesel blends (B20).
• Pull Force – the 68EZR will break away with a pull force of no more than 350 lbs.
• Unique Double-Poppet Design –features low pressure drop.
• Easily Reconnected – features “Push-Twist-Click” technology; simply realign the valve, push in and then twist until you hear the audible click.
• Cold weather compatible
• Reconnection force of approximately 7 lbs.

The OPW 66V Series breakaways are designed and rigorously tested for use in today’s fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. In their new 1” size, the 66V Series Breakaways accommodate high-flow applications.

Features & Benefits

• UL and ULC listed for use in diesel up to 5% biodiesel and models available and UL listed up 20% biodiesel blends (B20).
• Prevents Costly Damage to Dispensers – Pulls apart at less the designed pull force during drive-offs.
• Certainty of Operation – Designed for single use, so you know it is replaced instead of re-assembled.
• Prevents Hazardous and Costly Clean Up – Unique double poppet design closes leak path from both dispenser and separated hose side.

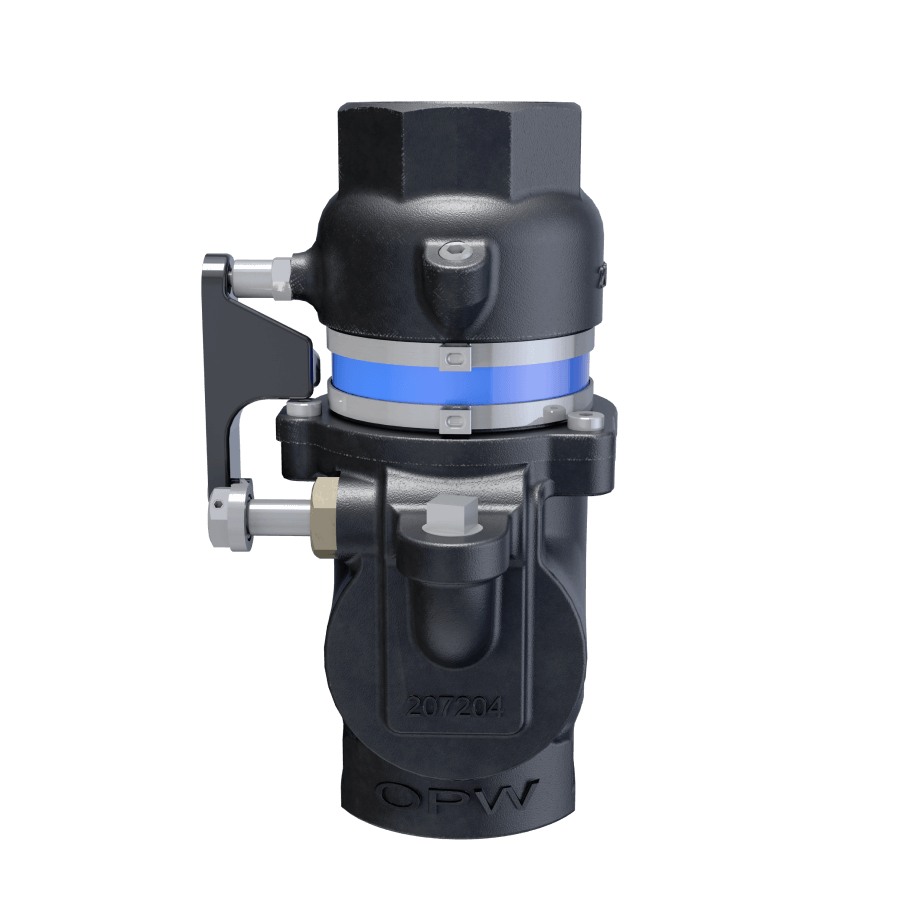

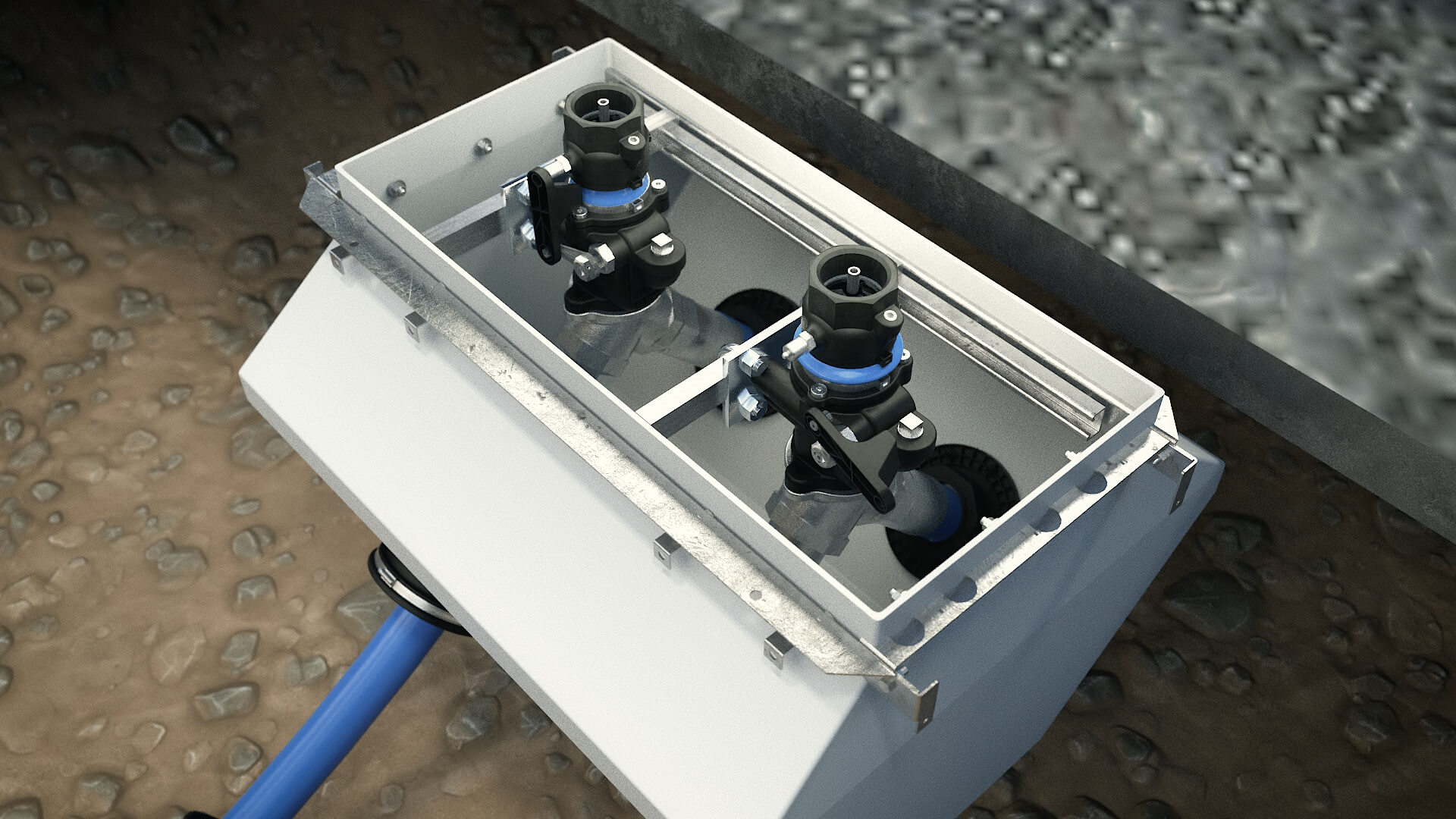

OPW raised the protection standard in emergency valves when it introduced the first double-poppet valve back in 1989. This industry-changing OPW innovation helped to significantly reduce the risk of fire, explosion, personal injury, property damage and environmental contamination at sites around the world. Now, the same leading safety technology is available for high flow applications.

Features & Benefits

• The ONLY emergency shut-off valve in the world designed to protect your customers, investments, and the environment against the potential hazards of undetected shear groove leaks caused by low-impact incidents.
• The patent-pending SmartGuard™ design contains shear groove leaks and prevents fuel from leaking into sumps to help reduce the risk of personal injury, property damage, environmental contamination, product loss and costly clean-up.
• Superior shear groove design and engineering results in reliable valve shut-off in the event of a pull-over or dislodged dispenser \Fusible link releases to automatically close the valve to reduce fire hazard.
• Rigorously tested to meet OPW’s rigid quality standards.

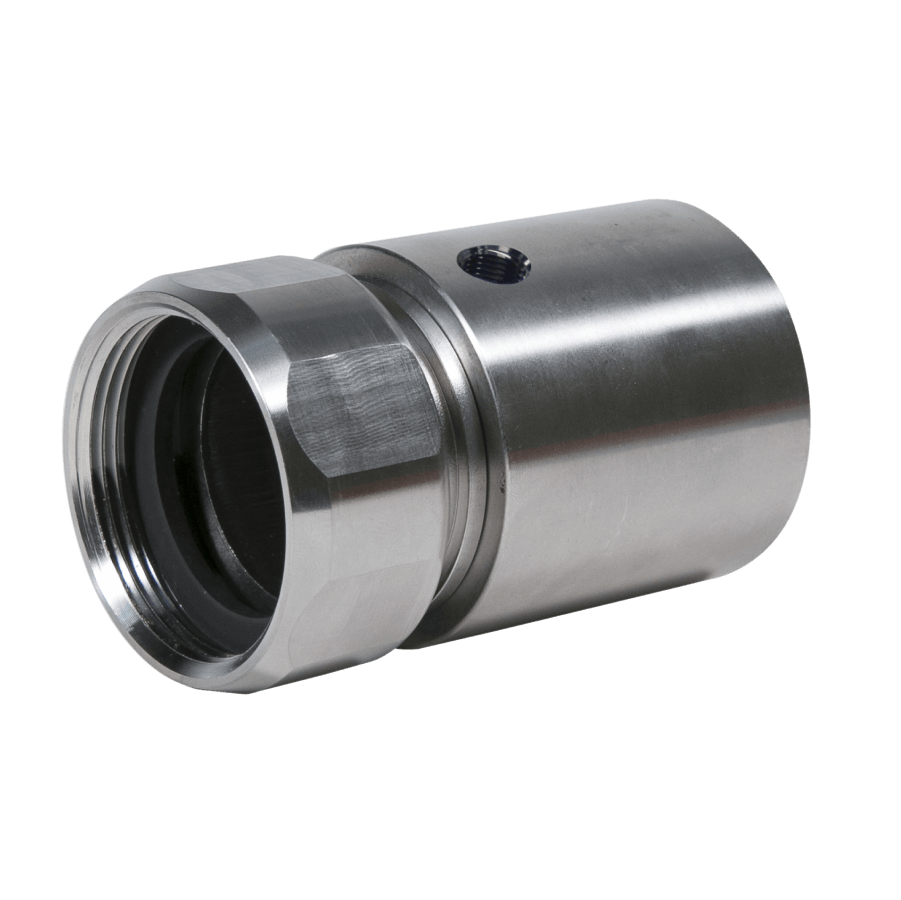

Double-Wall swivel couplings and fittings are of a double-wall design and are used to interconnect FlexWorks flexible piping. These UL/ULC-listed stainless steel couplings must be contained within containment sumps and not directly buried.

Features & Benefits

• Eliminate need for rubber test boot
• No trimming back secondary jackets
• Allow for continuous monitoring
• Stainless-steel construction compatible with all fuel brands
• Also available in 1.5” and 2” sizes

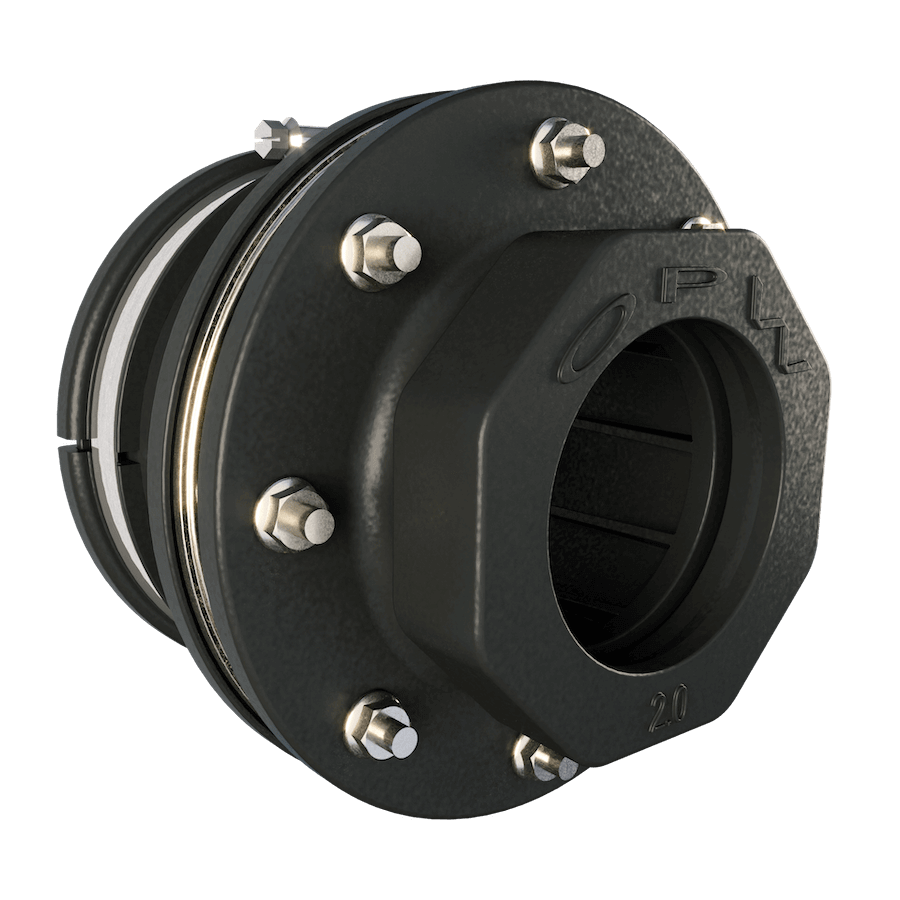

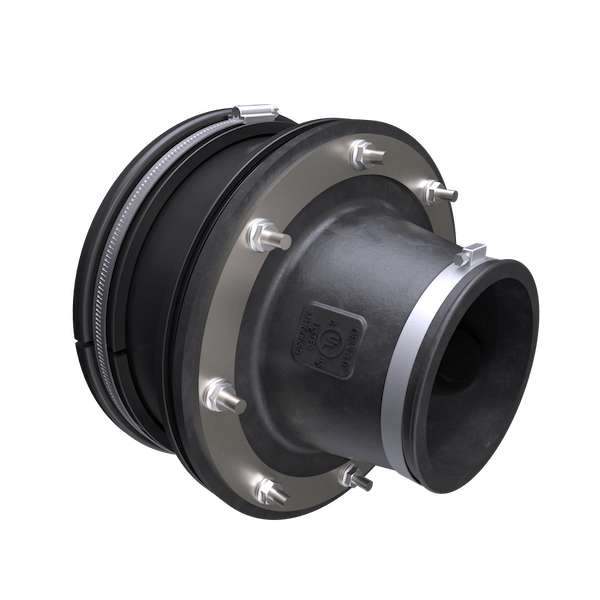

3" Hybrid Entry Fittings (HEF)

Our Hybrid Entry Fitting has minimal exposed rubber, yet still accommodates ground movement. The sealing redundancy throughout the fitting provides maximum containment and unmatched protection from water intrusion.

Features & Benefits

• Sealing redundancy throughout - Maximum containment and unmatched protection from water intrusion
• Preserves total accessibility – For monitoring, maintenance, testing and repair
• Maintains flexibility to accommodate pipe and ground movement
• Hard shell exterior – to weather the elements and abuse of the underground environment Also available in 1.5" and 2" sizes

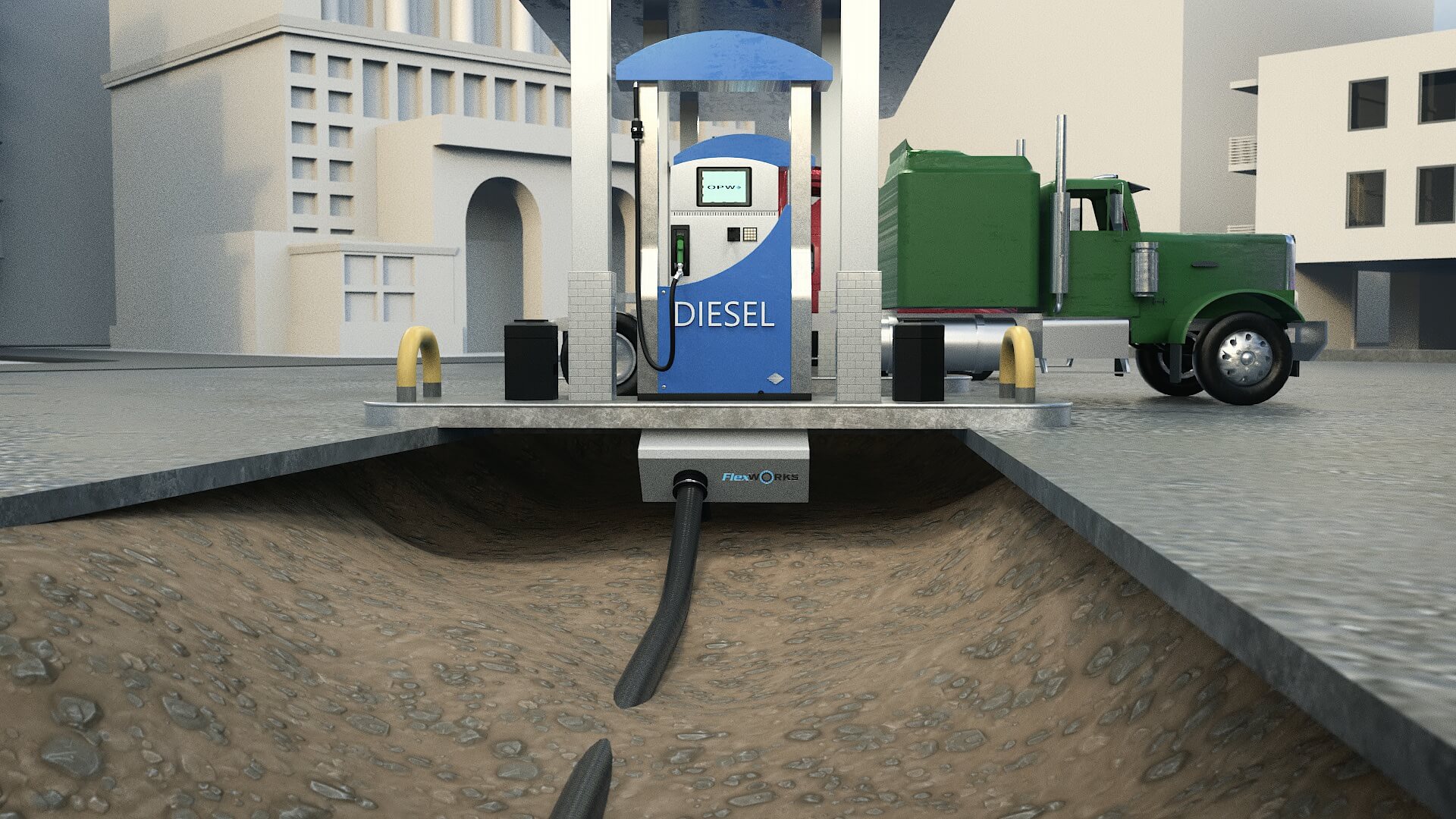

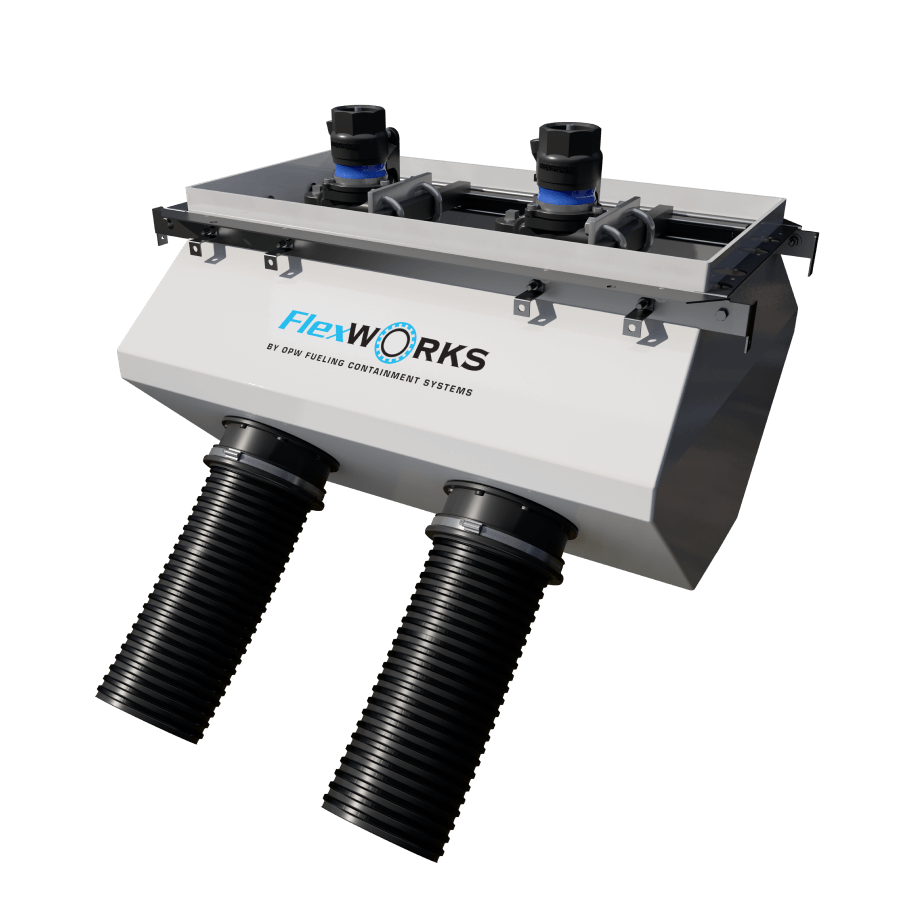

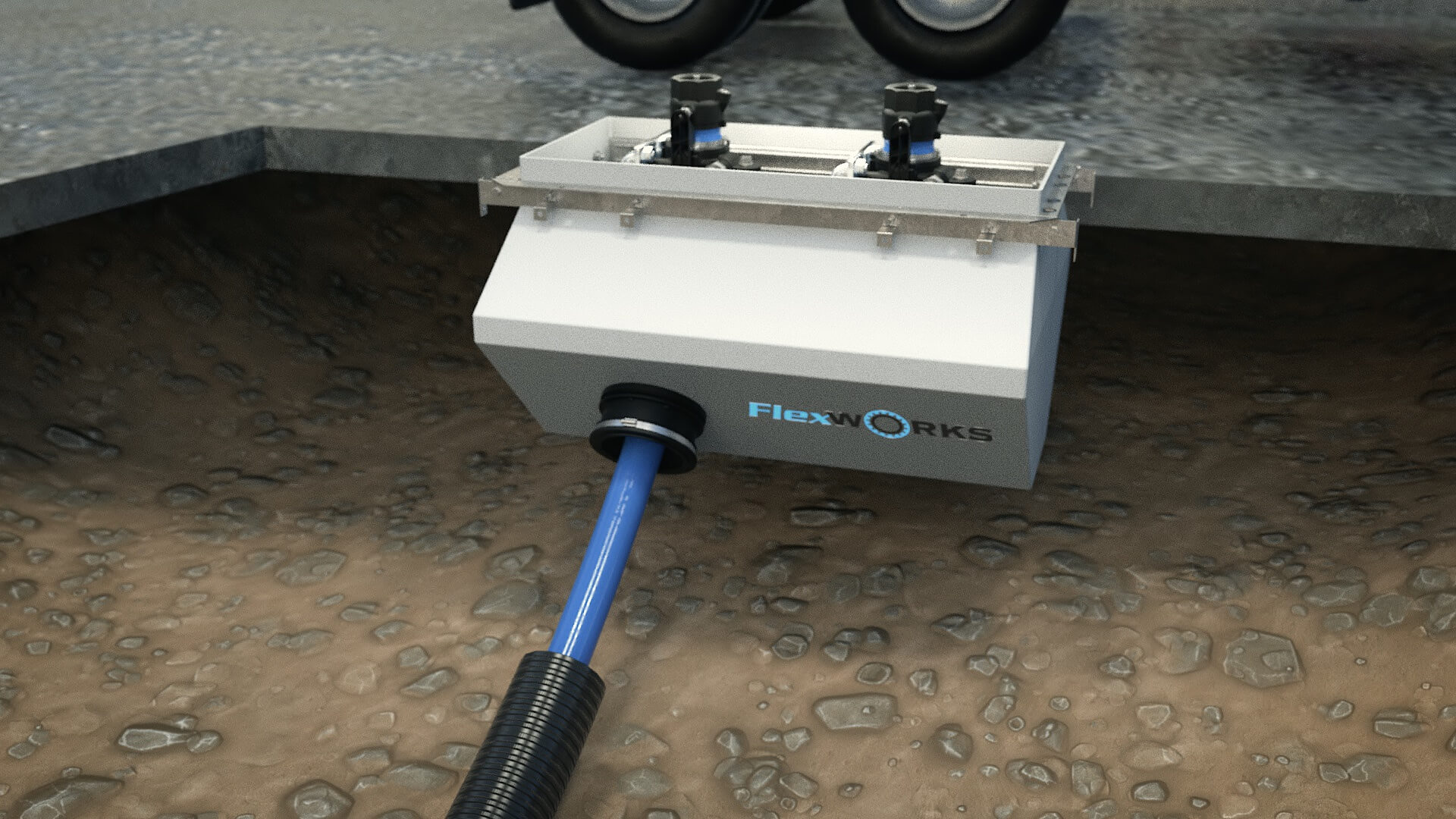

The Loop System from OPW is a revolutionary collection of underground fueling equipment that eliminates the need to break concrete for maintenance or repair tasks. Each component contributes to an efficient fuel-dispensing network where all service can be conducted above ground. The Loop System is now built to handle HiFlo applications, such as diesel-fueling operations for large trucks.

Features & Benefits

• Quick access for maintenance
• Fast and simple installation
• Pre-assembled at factory
• Handle HiFlo applications, such as retail truck stops.
• Accommodate fuel dispensing on both sides of truck
• New sizes to handle more demanding throughput

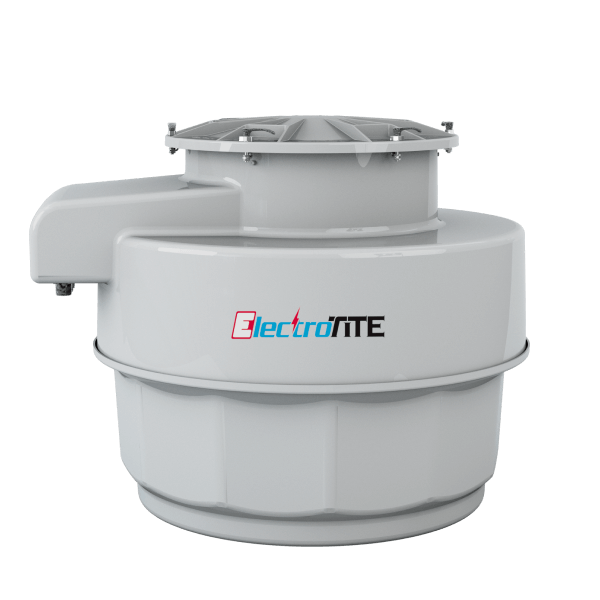

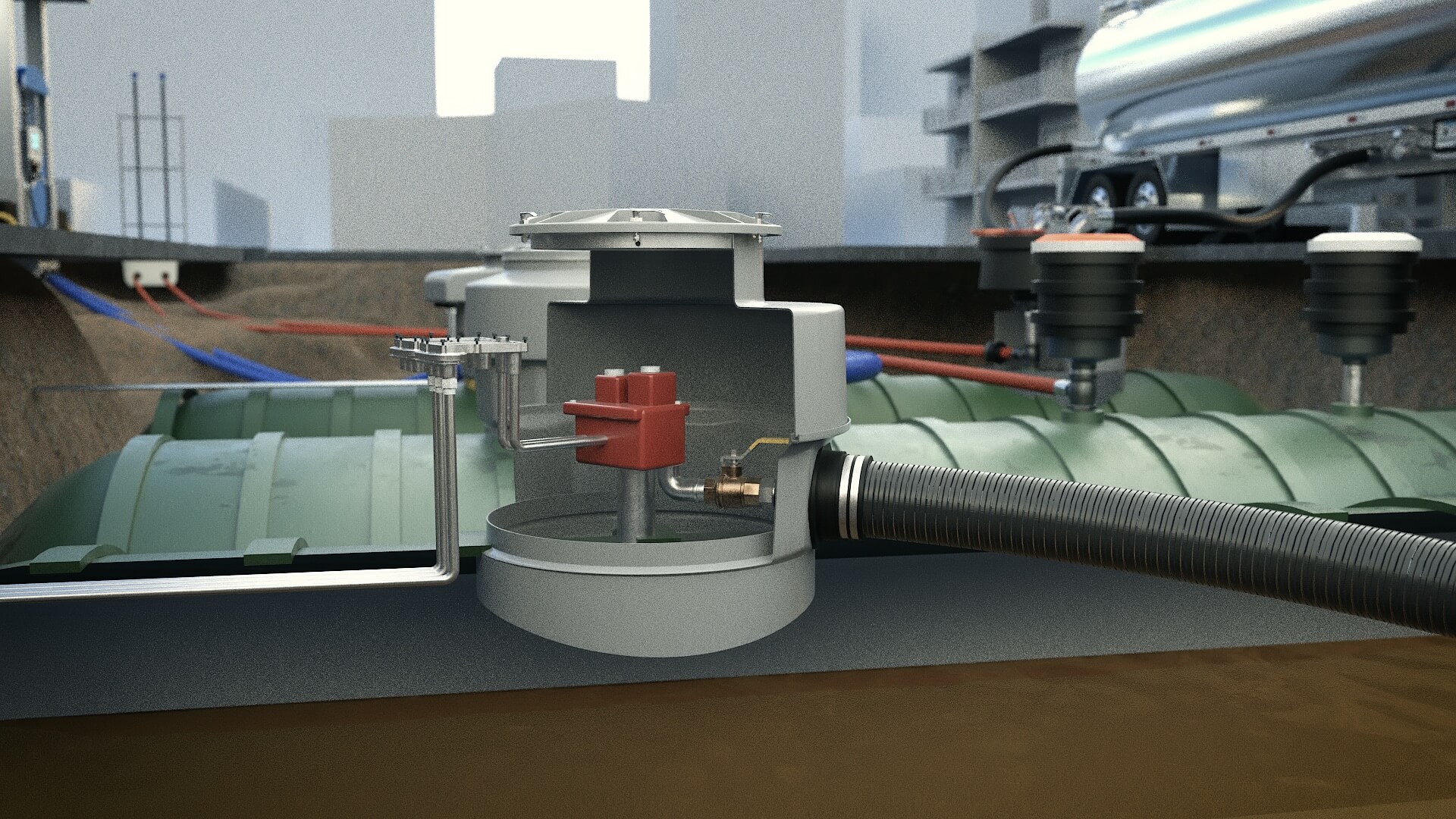

The market’s most watertight tank sump is now the most innovative by becoming conduit free. ElectroTite is the most watertight system on the market. It ships factory installed with conduit ports and electrical wiring box – eliminating unnecessary tank sump leak points at site installation.

Features & Benefits

• Watertight: reduced number of entry and lead points into sump, and sealed conduit threads on outside of the sump
• Versatile for your installation: UL Listed explosion-proof junction box allows rerouting of wires and sensors without entering sump
• Factory Installed: no field-installed conduit penetrations or cutting holes in the sump
• Accessible: able to install, inspect and repair conduit lines high up in tank sump
• Consolidated components: replaces up to 6 conduit entry fittings, conduit seal-offs and explosion-proof junction boxes

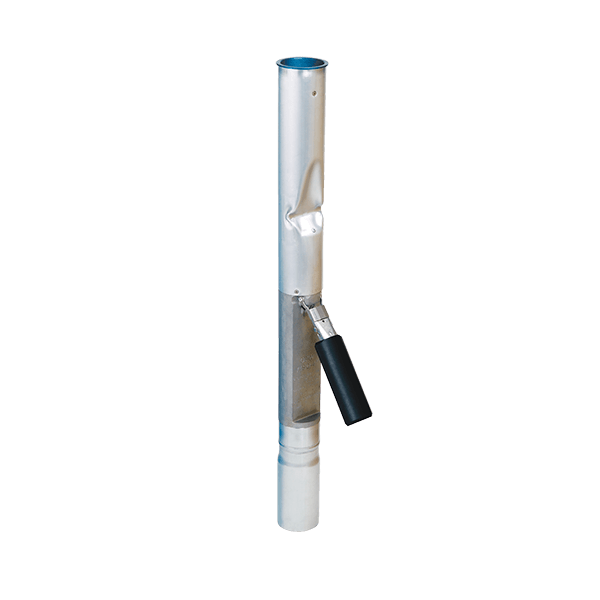

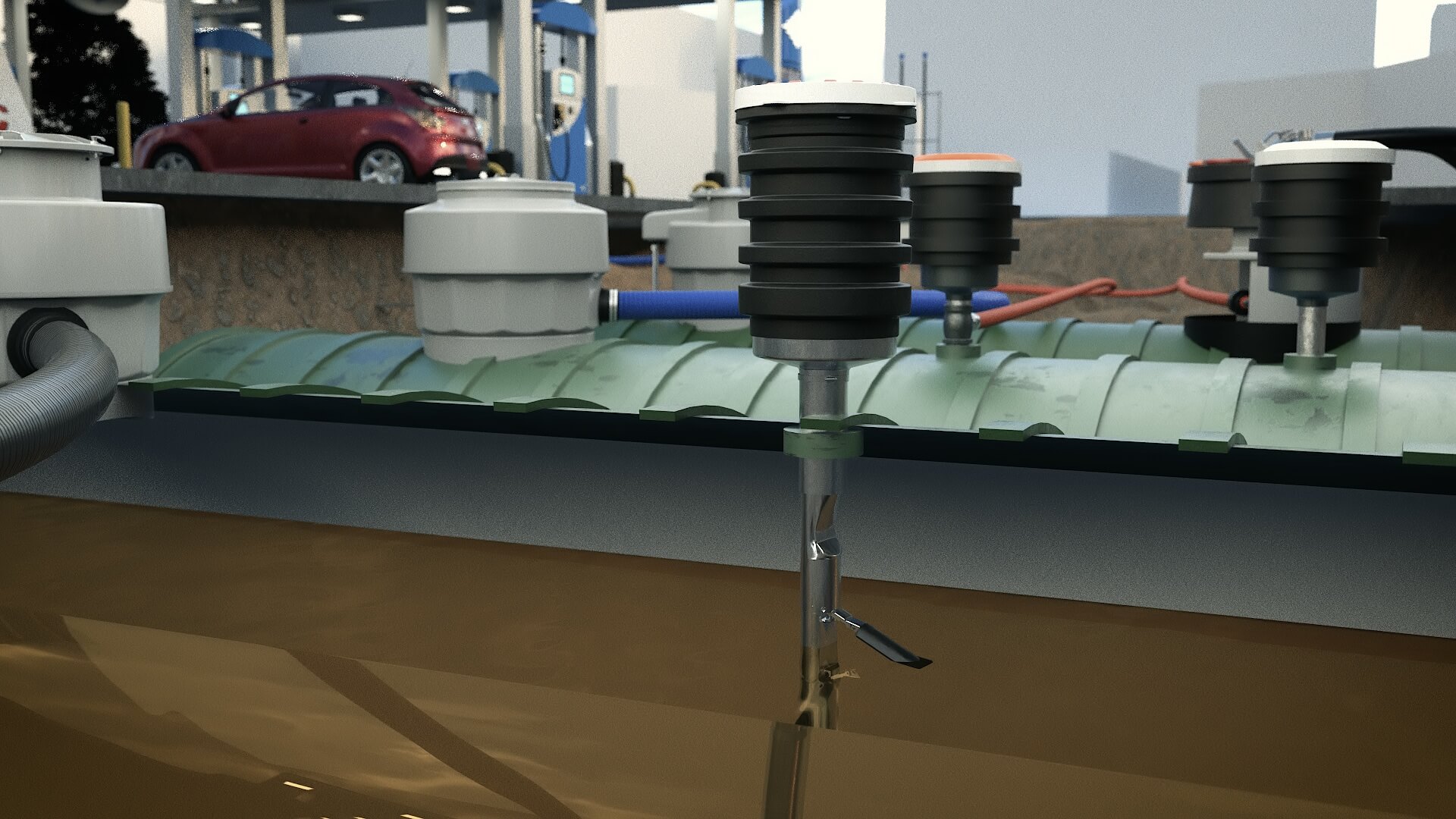

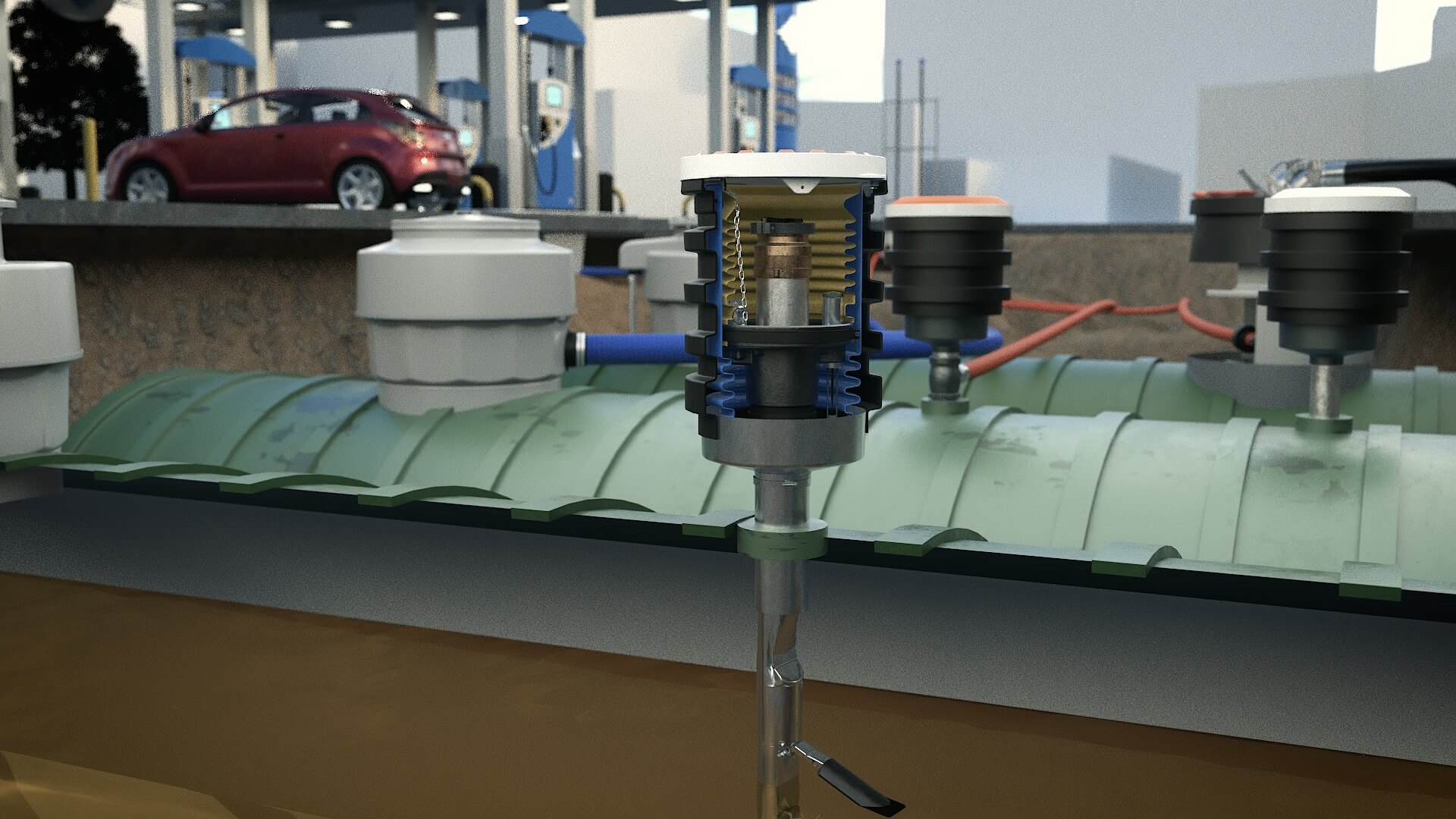

OPW's 71SO-T Overfill Prevention Valve is the only UST Overfill Prevention Valve that is testable from the surface....without removal from the tank, which allows operators to test in 60 seconds vs. 60 minutes per tank. The OPW 71SO-T allows easy installation (without breaking concrete) and requires no special manholes. The 71SO-T is the easiest, quickest, most cost-efficient way to ensure that your overfill valves will operate when called upon, verifiable without removing them from the tanks.

Testing and Verification can be done in 3 easy steps:

• Loosen the test plug
• Lift the float with the cable to simulate fill
• Validate the proper poppet operation

Features & Benefits

• Safe for Use - UL- and ULC-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
• Durable and Long Lasting Design – Cycle-tested and proven to last longer than 1 million cycles - Better than any other nozzle available on the market today*
• Convenient – One-fingerhold-open clip that is easy to set the flowrate (not on all models)
• Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.

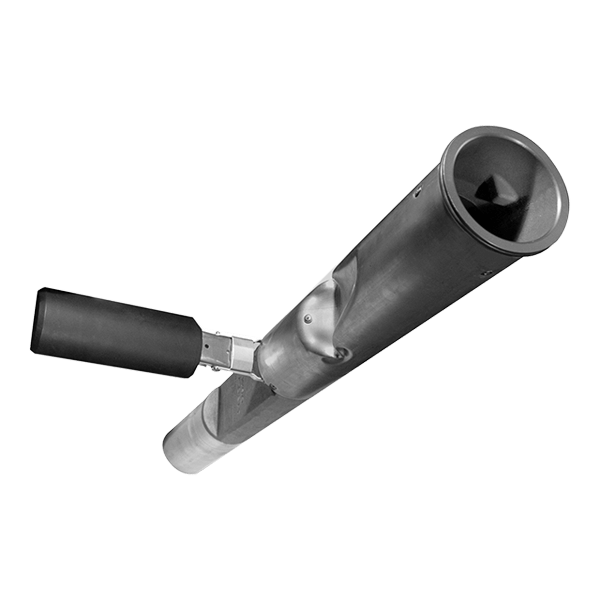

OPW’S 71SOM, CARB /EVR Approved for use with E85, vapor-tight Overfill Prevention Valve is designed to prevent the overfill of underground storage tanks by providing a positive shut-off of product delivery. The shut-off valve is an integral part of the drop tube used for gravity filling. The OPW 71SO allows easy installation (without breaking concrete) and requires no special manholes.

Features & Benefits

• CARB /EVR Approved for use with E85
• Constructed of nickel plated aluminum, anodized aluminum, stainless steel and other compatible materials; no exposed bare aluminum
• Stainless steel lower tube included, no epoxy needed in field
• Designed for tanks up to 10 ft bury and 10 ft in diameter
• Robustly designed for long term vapor-tight performance in aggressive fuels

Designed in collaboration with contractors and end-users, the NEW 1SC-3112D EDGE™ Double-Wall Sealable Cover Spill Container installs in the same space as single wall buckets. The EDGE™ delivers best-in-class features that significantly improve reliability, installation, testing and serviceability-ease. The EDGE™ exceeds the performance levels of all other double wall spill containers.

Features & Benefits

• Unbeatable installation ease
• Uses existing riser pipe
• Unparalleled serviceability
• Superior quality
• Significantly reduces installation time and labor costs

Introducing an affordable, all-accessible, all-replaceable and all-maintainable spill container from OPW. Never break concrete again with our new EPA Compliant UST Solution for today, tomorrow and the future.

Features & Benefits

• Unbeatable installation ease
• Uses existing riser pipe
• Unparalleled serviceability
• Superior quality
• Significantly reduces installation time and labor costs

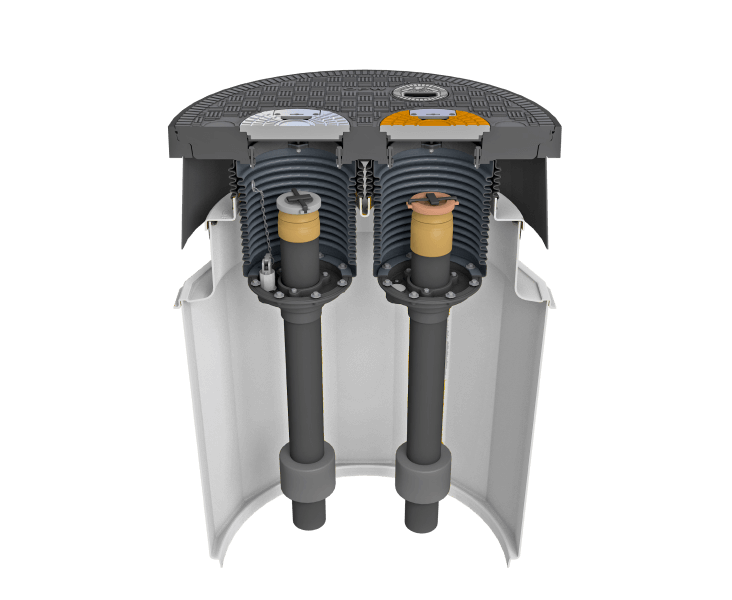

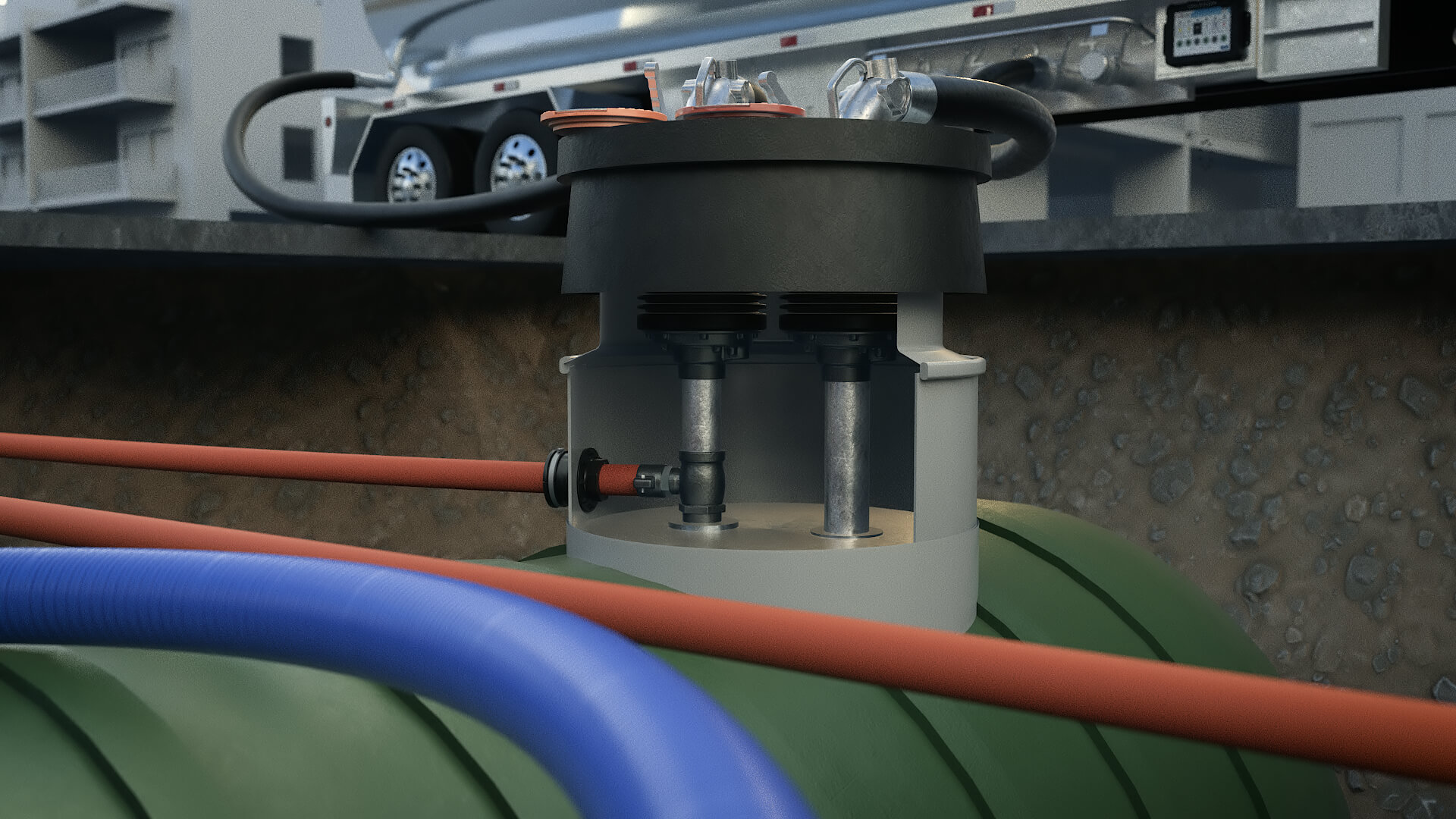

OPW "FibreTite" multi-port spill containment manholes provide spill containment for underground storage tank (UST) fill pipes and vapor recovery risers.
Multi-ports are installed over the top of tank sumps to preserve future access to the tank top and to facilitate containment of tank bung fittings.
FibreTite’s watertight covers are easy to remove composite manhole covers are available with center or offset port for access to fill risers.

Features & Benefits

• Lightweight - reduce risk of back, foot and hand injuries
• No Bolts Required to Seal Top Cover
• Composite construction; does not corrode
• Watertight, sealed design
• Ergonomic, single person removal and replacement with Fibrelite lifting handle
• Easy Access Watertight Sump Inspection Port
• Replaceable Double Wall Spill Containment
• Easy access to Overfill Prevention Valve

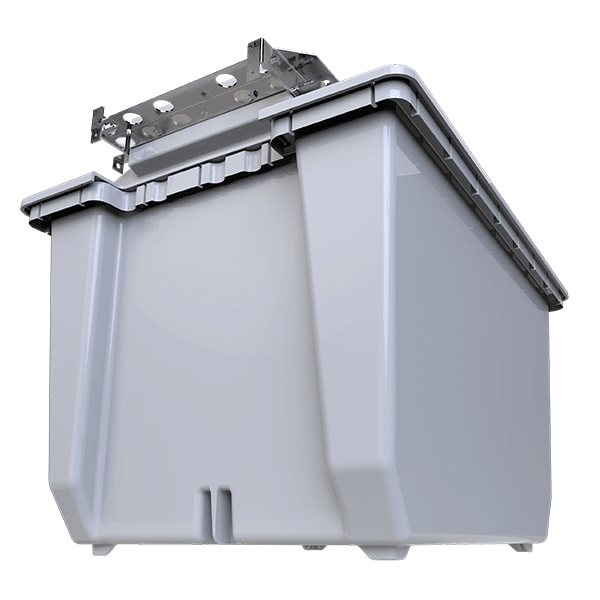

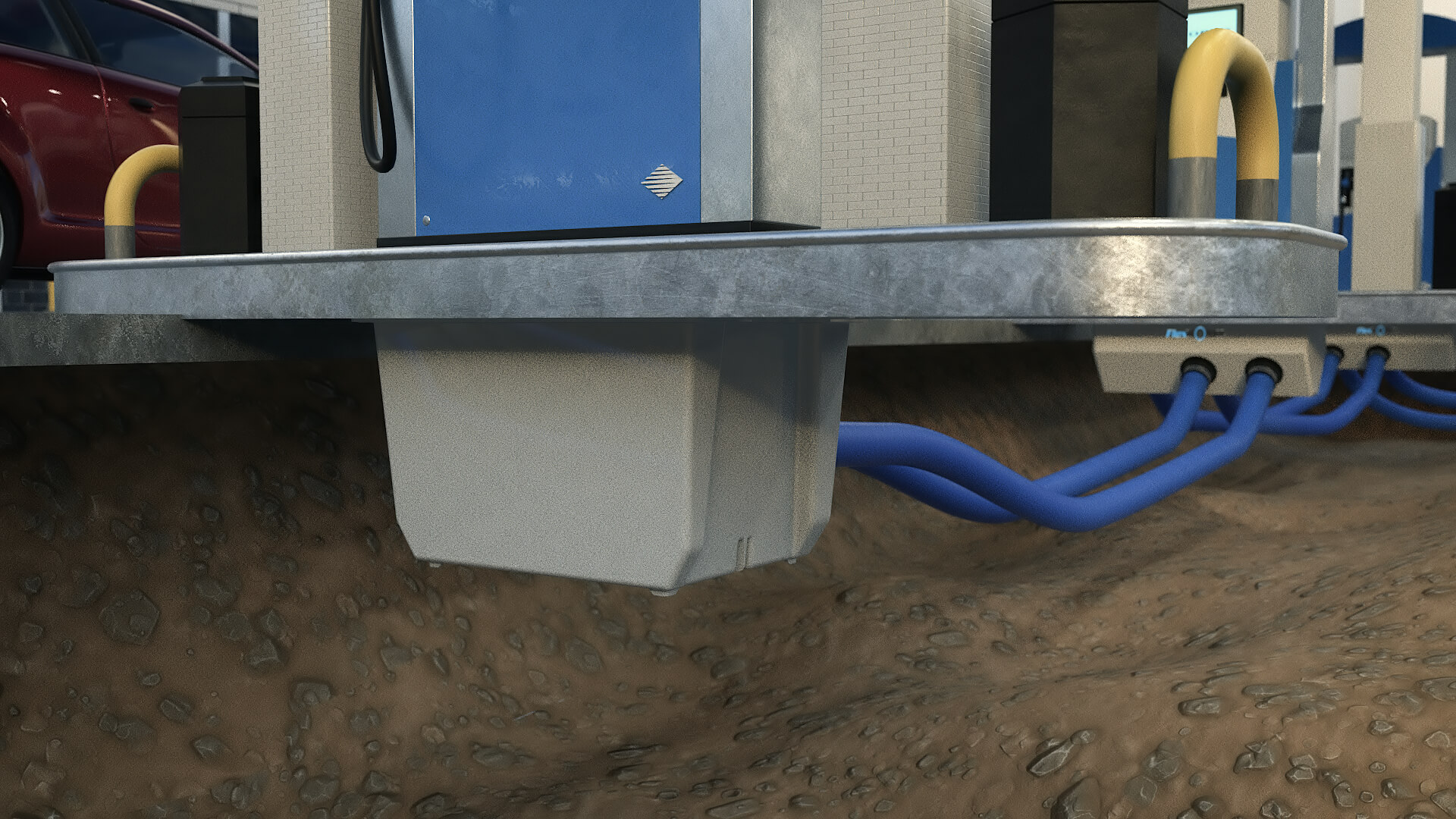

Most dispenser sumps force fueling station operators to choose between quality, speed or value. Produced using an Advanced Composite Technology manufacturing process, the DSE Dispenser Sump can deliver all three: best-in-class quality, fast lead times and affordability without sacrifice. DSE is installed beneath fuel dispensers to provide access to and secondary containment of dispenser plumbing, emergency shear valves and underground piping connections.

Features & Benefits

• Advanced Composite Manufacturing Technology
• Quick and Efficient Manufacturing Time per Unit
• Designed for Easy Nesting, Stacking and Unstacking
• Smooth Surface on Both Sides of the Sump Wall
• One Base for All Dispenser Models
• Closed-Molded Manufacturing Process
• Backed by OPW's legendary service and expertise
• UL and ULc Listed

50 Years of Unmatched Chemical Resistance Performance Packed into One Unique Pipe - KYNAR® PVDF + OPW = 20 Years of Excellence in Underground Pipe Performance. OPW has developed a pipe in response to the voice of the customer. You asked and we delivered! The new pipe is more flexible, lighter and has reduced memory. New 3” size accommodates high-flow applications. And as always, UL listed to the current standards.

Features & Benefits

• No buried or underground fittings or joints
• No glue kits or welding of joints in the field
• Continuous piping runs between containment sumps
• All termination points and pipe connections are safely contained inside sumps

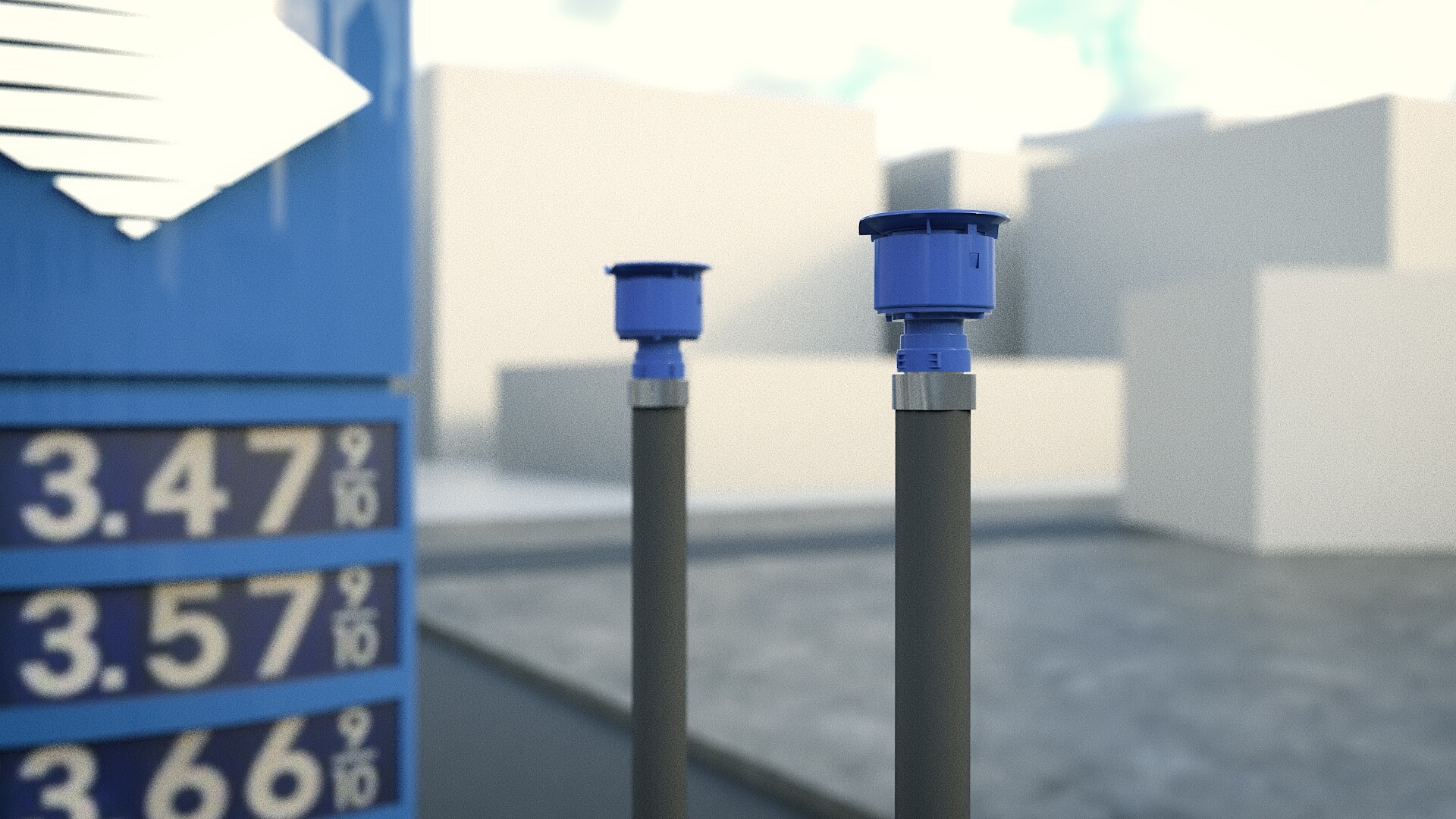

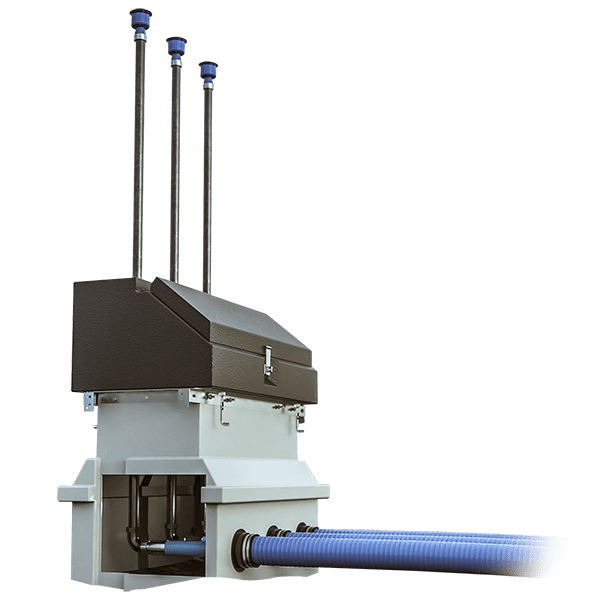

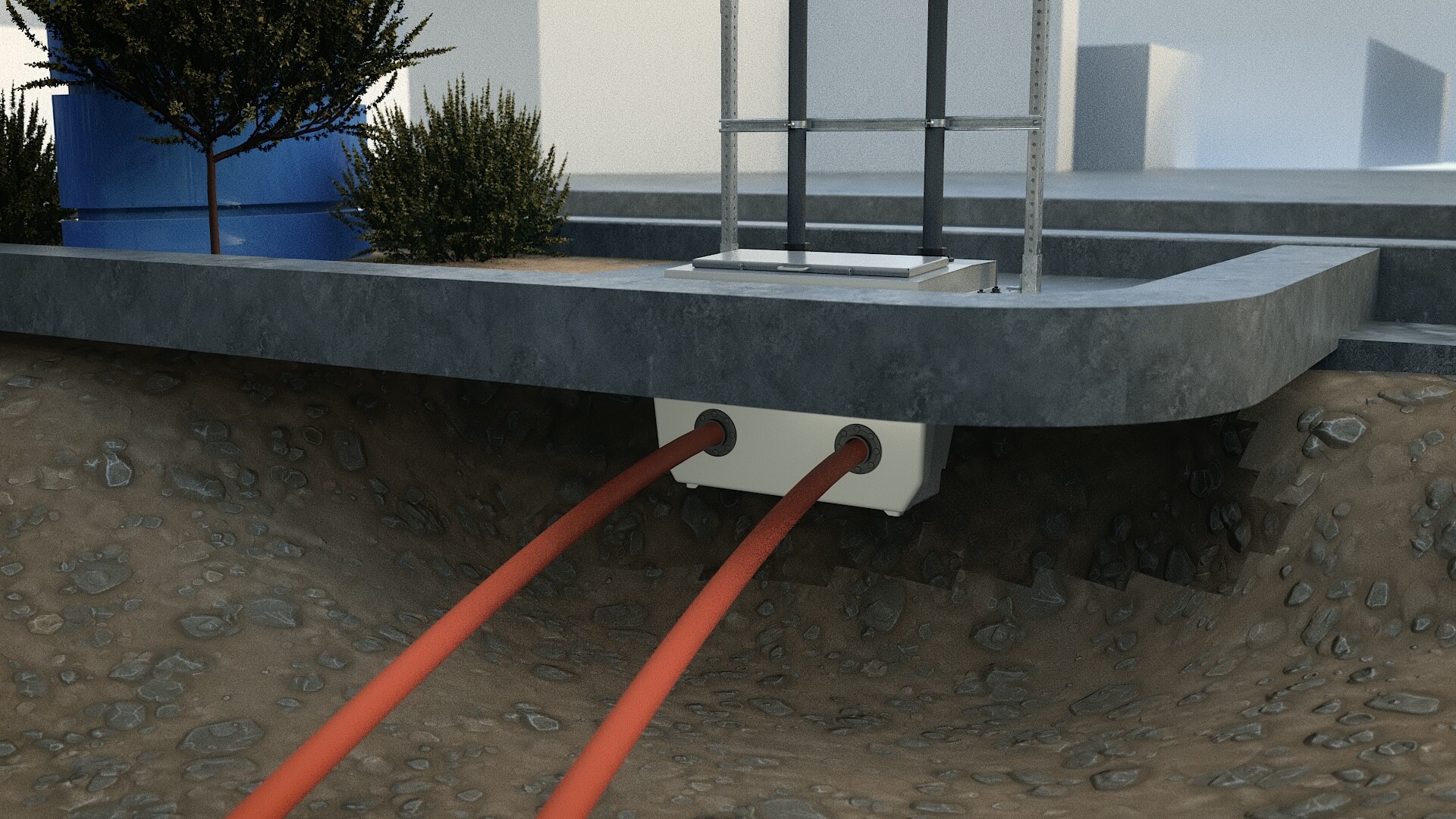

Flexworks Vent Pipe

In response to the extended lead times with fiberglass piping suppliers, OPW is proud to offer a readily available solution for your vent piping needs. OPW Flexworks Vent Pipe is made with the same legendary construction and materials as our best-in-class primary fuel piping. This includes a PVDF Kynar liner and bonded extrusion of all layers. OPW Flexworks vent pipe is UL and ULC listed for use as a vent pipe and comes in both 2” single and double wall construction. Stainless steel fittings make it an ideal alternative for direct bury fiberglass pipe.

Features & Benefits

• UL and ULC listed for vapor and vent applications
• No troublesome glue kits or welding needed
• Continuous piping runs from tank extractor to vent stack with not buried joints
• Can be buried directly or contained in sumps

A 4" diameter corrugated flexible conduit used to provide access to and permit the future replacement of the Flex piping if desired. This corrugated pipe is strong enough to withstand H-20 loading requirements when properly buried and thick enough to minimize damage from shipping and jobsite handling. Access pipe can accommodate the 3/4", 1", 1-1/2", 2”, 3" FlexWorks supply pipe.

• Crush and puncture-resistant
• Semi-smooth liner facilitates ease of installation
• Saves you time and money
• No buried joints

Transition sump is used for containment and accessibility to the fittings at the vent stack, located where the underground vent piping connects to the rigid vent stack piping.

Features & Benefits

• Non-corroding, polyethylene sump container
• Weatherproof lockable cover
• Exterior anchoring system

A 4" diameter corrugated flexible conduit used to provide access to and permit the future replacement of the Flex piping if desired. This corrugated pipe is strong enough to withstand H-20 loading requirements when properly buried and thick enough to minimize damage from shipping and jobsite handling. Access pipe can accommodate the 3/4", 1", 1-1/2", 2”, 3" FlexWorks supply pipe.

• Crush and puncture-resistant
• Semi-smooth liner facilitates ease of installation
• Saves you time and money
• No buried joints

Pressure Vacuum Vents are installed on the top of vent pipes from underground or above ground fuel storage tanks. The vent cap and internal wire screen are designed to protect the tank vent lines against intrusion and blockage from water, debris or insects. A normally closed poppet in the valve opens at a predetermined pressure or vacuum setting to allow the tank to vent.
CARB Certified for use on all existing Phase I Vapor Recovery EVR Executive Orders

Features & Benefits

• Preset and Tested Factory Settings – 2.5" to 6" water column pressure settings and -6" to -10" water column vacuum settings.
• Cycle Tested for Reliability – tested to the equivalent of 80 years of service in the most severe environment without leakage problems.
• Long Service Life – corrosion-resistant Duratuff® composite construction.
• Easy Installation – the 723V is available in 2" and 3" threaded versions.
• No Tools Required – a removable snap fit top allows for easy maintenance (recommended yearly).
• Screened Tank Vent Lines – a 65 micron stainless steel screen helps prevent debris and insects from entering the tank vent lines. An added screen installed at the base prevents debris from intruding from the vent stack.

OPW raised the protection standard in emergency valves when it introduced the first double-poppet valve back in 1989. This industry-changing OPW innovation helped to significantly reduce the risk of fire, explosion, personal injury, property damage and environmental contamination at sites around the world.

Features & Benefits

• The ONLY emergency shut-off valve in the world designed to protect your customers, investments, and the environment against the potential hazards of undetected shear groove leaks caused by low-impact incidents.
• The patent-pending SmartGuard™ design contains shear groove leaks and prevents fuel from leaking into sumps to help reduce the risk of personal injury, property damage, environmental contamination, product loss and costly clean-up.
• Superior shear groove design and engineering results in reliable valve shut-off in the event of a pull-over or dislodged dispenser \Fusible link releases to automatically close the valve to reduce fire hazard.
• Rigorously tested to meet OPW’s rigid quality standards.

Double-Wall swivel couplings and fittings are of a double-wall design and are used to interconnect FlexWorks flexible piping. These UL/ULC-listed stainless steel couplings must be contained within containment sumps and not directly buried.

Features & Benefits

• Eliminate need for rubber test boot
• No trimming back secondary jackets
• Allow for continuous monitoring
• Stainless-steel construction compatible with all fuel brands
• Available in 1.5", 2" and 3" sizes

Our Rigid Entry Fitting has minimal exposed rubber, yet still accommodates ground movement. The sealing redundancy throughout the fitting provides maximum containment and unmatched protection from water intrusion.

Features & Benefits

• Sealing redundancy throughout - Maximum containment and unmatched protection from water intrusion
• Preserves total accessibility – For monitoring, maintenance, testing and repair
• Maintains flexibility to accommodate pipe and ground movement
• Hard shell exterior – to weather the elements and abuse of the underground environment
• Available in 1.5", 2" and 3" sizes

The Loop System dispenser sump is constructed with completely integrated, environmentally secure components that have been prefabricated and factory assembled to dramatically reduce field labor and associated costs from potential installation errors. Total underground access once installed provides hassle-free inspection, maintenance, and repair without excavation.

Features & Benefits

• Pre-assembled at factory with entry fittings, stabilizer bars and 10Plus shear valves.
• Drastically reduces time of piping installation with plug-and-play components
• Shallow depth and angles sides eliminates ground water infiltration
• Greatly reduces the time and water to hydrostatically test the sump
• Access to all dispenser pipe connections, maintenance, repair, and inspection all easily done above ground without removal of the dispenser
• Provides a lower installed and maintenance cost than traditional systems with deep dispenser sumps
